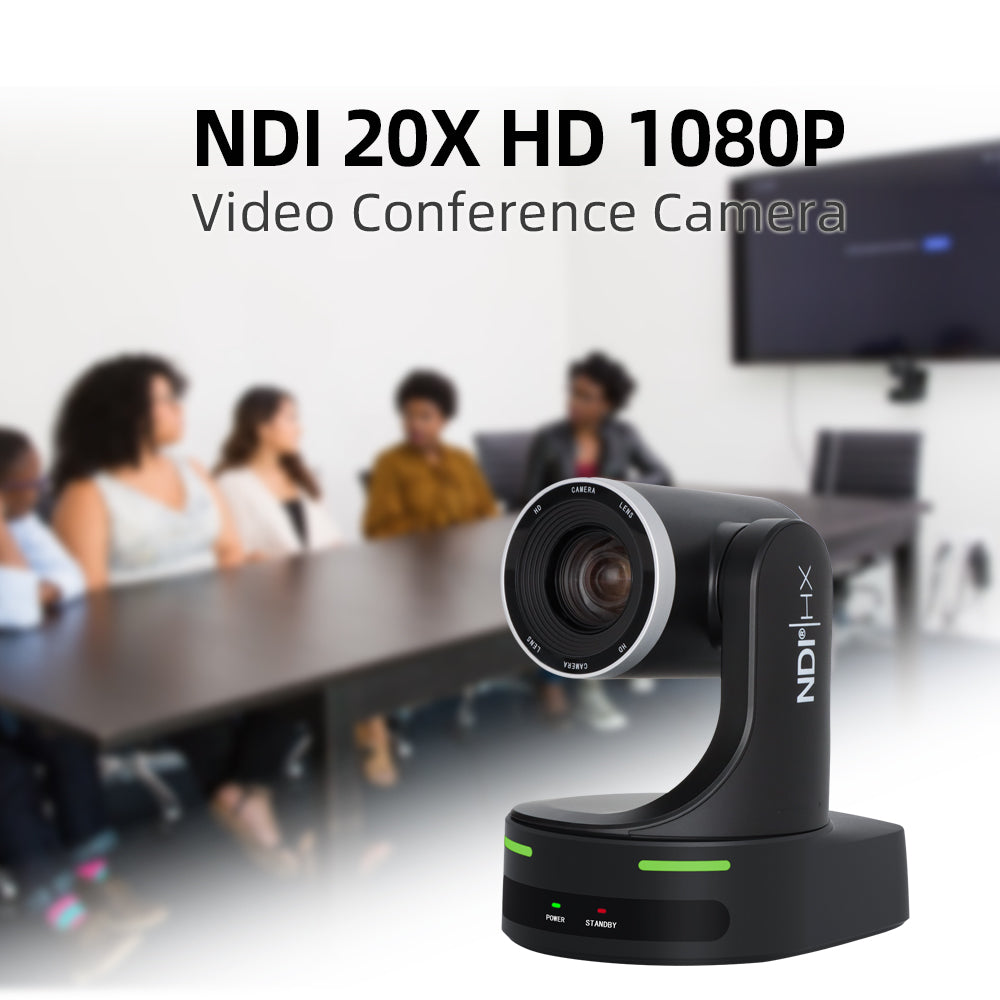

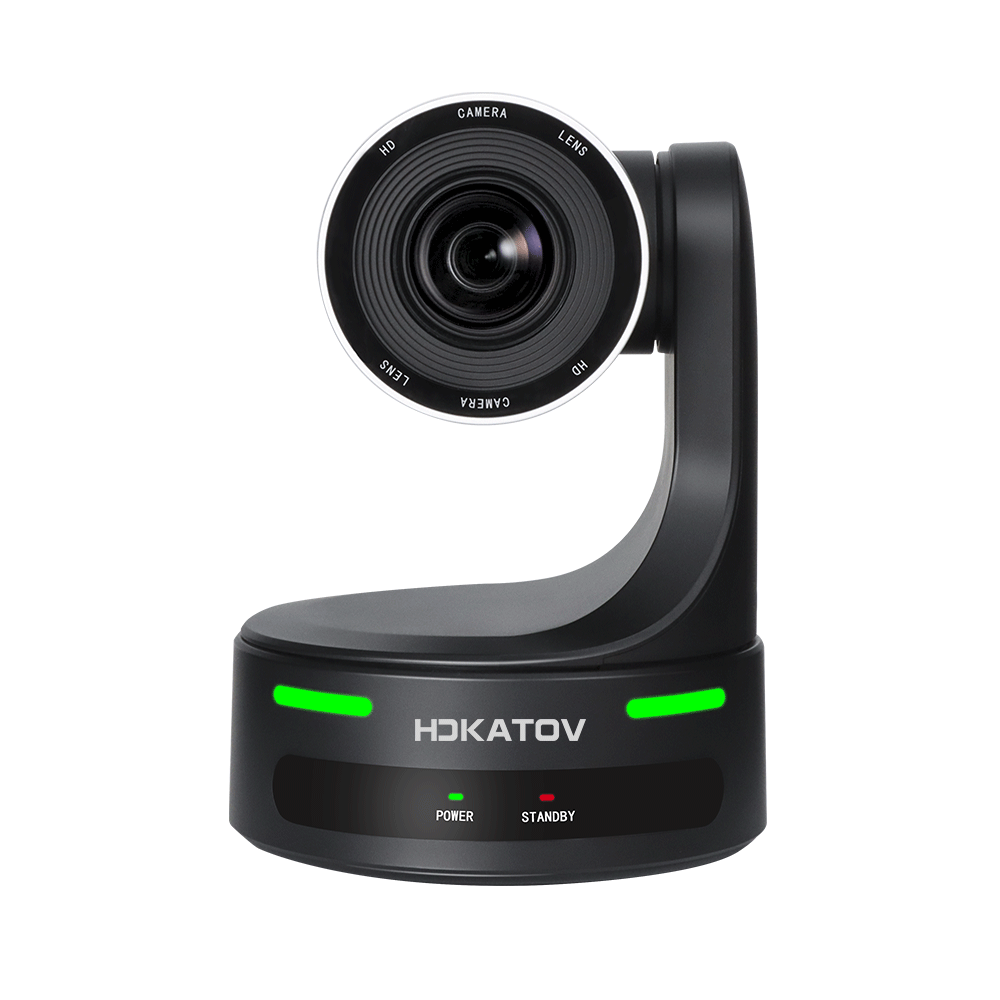

HDKATOV KT-HD86 1080p PTZ conference camera

€799,90

Tax included.

The HDKATOV KT-HD86 is a high-quality conference camera for video conferencing or training.

variant: 20x

12x 20x

Upgrade: NDI

SDI NDI

In stock

Financing with PayPal

We want to make your shopping process as easy as possible and offer you numerous payment options to pay for your order at Streamoptics.

Prepayment
PayPal
Credit card
Invoice

Shipping

All our orders (Germany, Europe) are processed with the shipping service providers DHL Paket or DPD. Orders outside of Europe are carried out exclusively with DHL International.

We would like to point out that deliveries to non-EU countries may incur additional duties, taxes and fees.

Assembly & Installation

We know it's not always easy to build a flawless setting. Our trained Streamoptics Task team will support you with assembly and installation on site and is also available to advise you.

Our service team is available Monday to Friday: 8am-8:30pm.

Call us on: +44 56 0370 9085

HDKATOV HDKATOV KT-HD86 1080p PTZ conference camera

€799,90

HDKATOV KT-HD86 1080p PTZ conference camera

The Sony 1/2.8" progressive CMOS sensor has 2.07 megapixels and delivers professional images with a maximum resolution of 1920x1080/60fps. All common connections for video transmission are available, including HDMI, 3G-SDI, LAN, and USB 3.0.

With the help of the CMOS sensor, the image can be convincing even in dark environments and can showcase all participants of a conference in the best possible way.

Supported video compression formats are YUY2, H.265, MJPG, and H.264. Supported network protocols are ONVIF, SRT, RTSP, RTMP, and NDI®|HX (optional).
The KATO Vision KT-HD86 is available with a 12x and 20x optical zoom.

Technische Details

Image sensor
- 1/2.8” SONY Progressive CMOS
- 2.07 megapixels

Resolution and frame rate
- HDMI / 3G-SDI / IP / USB 3.0
1920 x 1080p (60 / 59.94 / 50 / 29.97 /25 fps)
1280 x 720p (60 / 59.94 / 50 / 29.97 /25 fps)

Zoom function
- 12x Optical Zoom HD86R
- 20x Optical Zoom HD 86A

Connections
- RS-232 IN / OUT
- RS-422
- LINE IN
- DC 12V
- LAN
- USB 3.0
- HDMI
- 3G-SDI

Video compression formats
- YUY2, H.265, MJPG and H.264

Network protocols
- ONVIF, SRT, RTSP, RTMP, RTMPS, NDI®|HX2 (Optional!)

Optional features (license required)
- NDI®|HX2
- POE

Dimensions and weight
- 181mm (H) x 133mm (W) x 161mm (D)
- 1200g

Power supply
- DC IN 12V
- POE (Optional!)

Scope of delivery
- DC 12V power supply
- IR remote control
- Operating instructions
- RS 232 cable
- HDMI cable
- USB cable
- Ceiling mount / mounting kit
