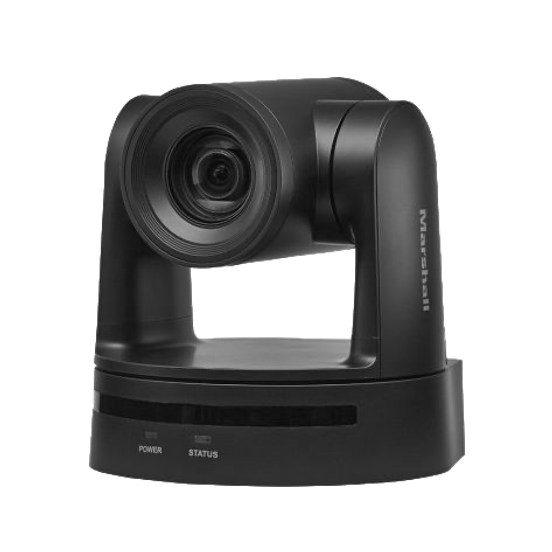

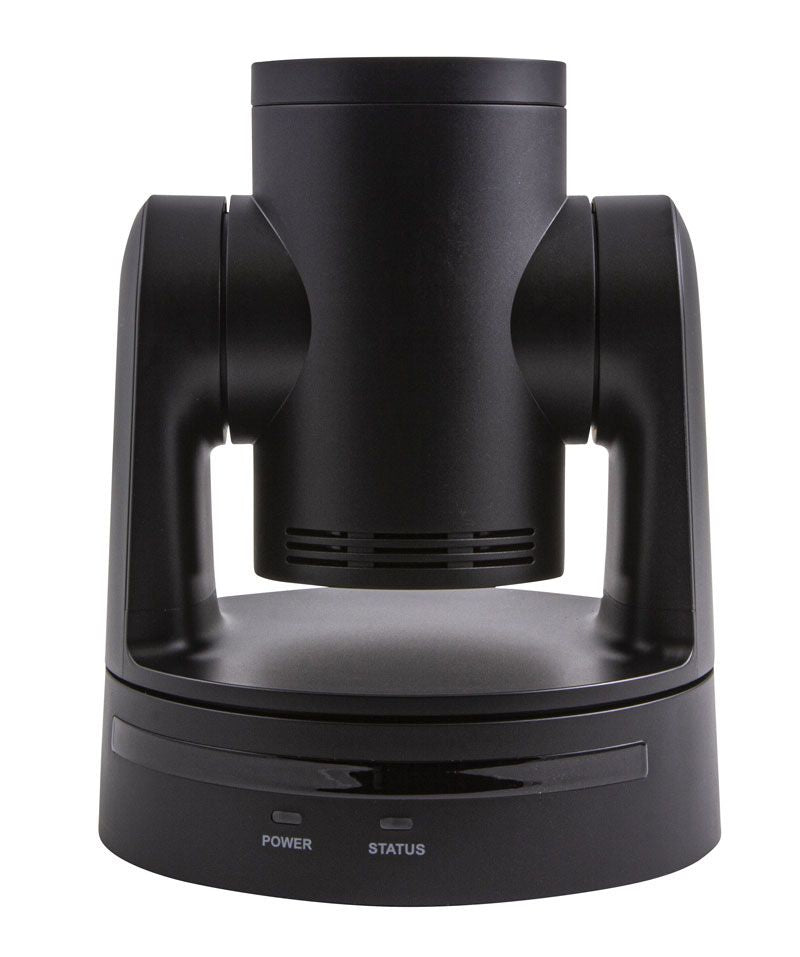

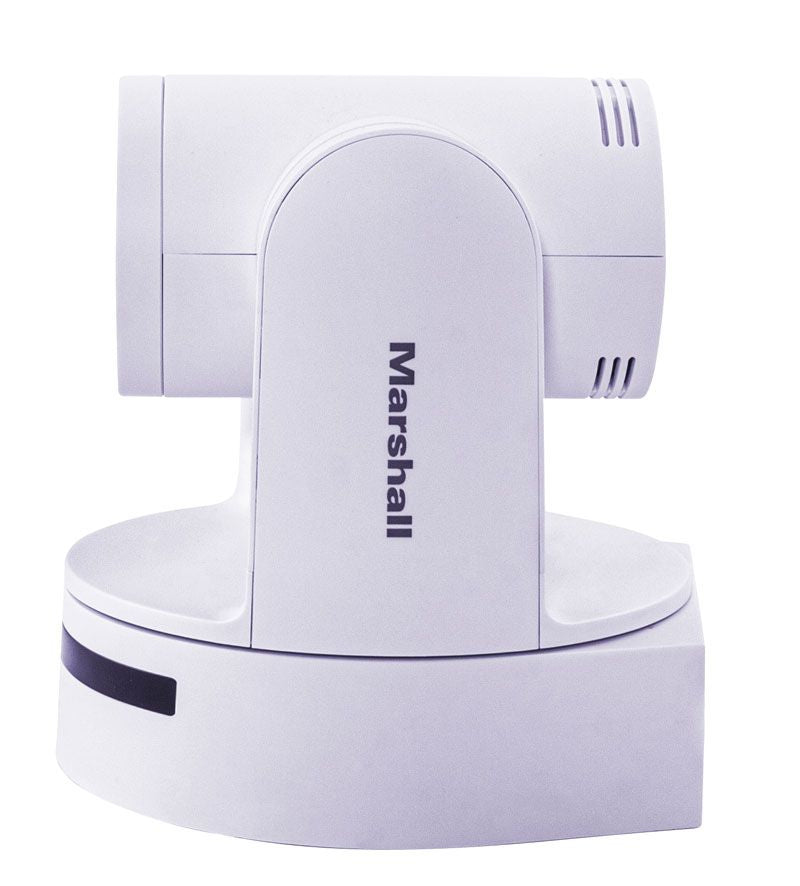

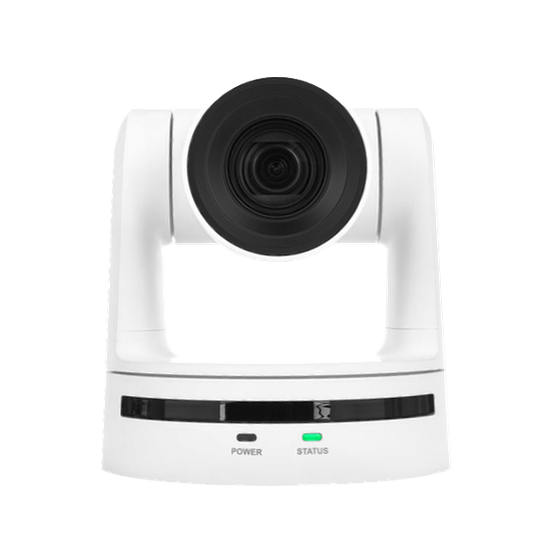

Marshall CV605-U3 PTZ Camera

The Marshall CV605-U3 offers the ability to output Full HD video via HDMI, USB, and IP simultaneously. With its 1/2.8 CMOS sensor, the camera ensures clear images even in challenging lighting conditions.
Thanks to its 1/2.8-inch progressive CMOS sensor, the camera achieves a maximum resolution of 1920x1080/60fps. The integrated 2-megapixel sensor, combined with the optional 5x optical zoom, enables detailed video and versatile recording options. The Marshall CV605 supports various network protocols such as ONVIF, SRT, RTSP, and RTMP, enabling seamless integration into diverse network infrastructures and streaming platforms.

The Marshall CV605-U3 is the version without SDI!

Image sensor
- 1/2.8 SONY CMOS
- 2 megapixels

Resolution and frame rate
- HDMI / IP / USB
1920 x 1080p (60 / 59.94 / 50 / 29.97 /25 fps)
1280 x 720p (60 / 59.94 / 50 / 29.97 /25 fps)

Zoom function
- 5x optical zoom

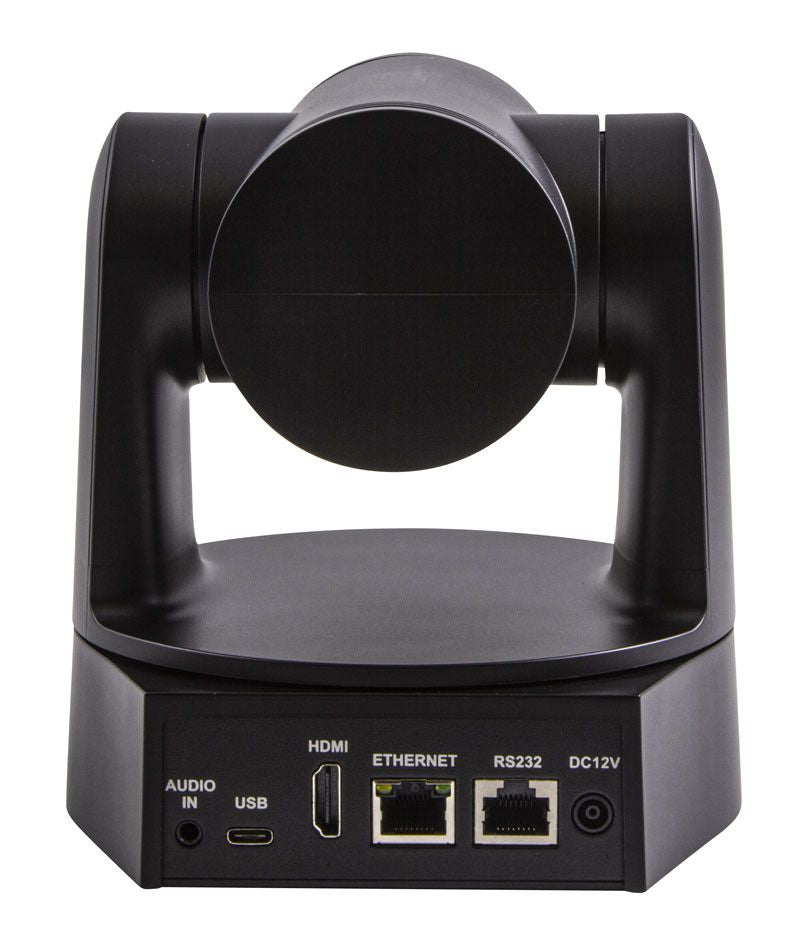

Connections
- Audio IN
- USB-C
- HDMI
- LAN
- RS-232
- DC 12V

Video compression formats
- YUY2, H.265, MJPG and H.264

Network protocols
- RTSP/RTMP, ONVIF, GBT28181, Visca

Dimensions and weight
- 160mm (H) x 145mm (W) x 170mm (D)
- 1100g

Power supply
- DC IN 12V
- POE+

Scope of delivery
- Infrared remote control
- Power supply & power cable
