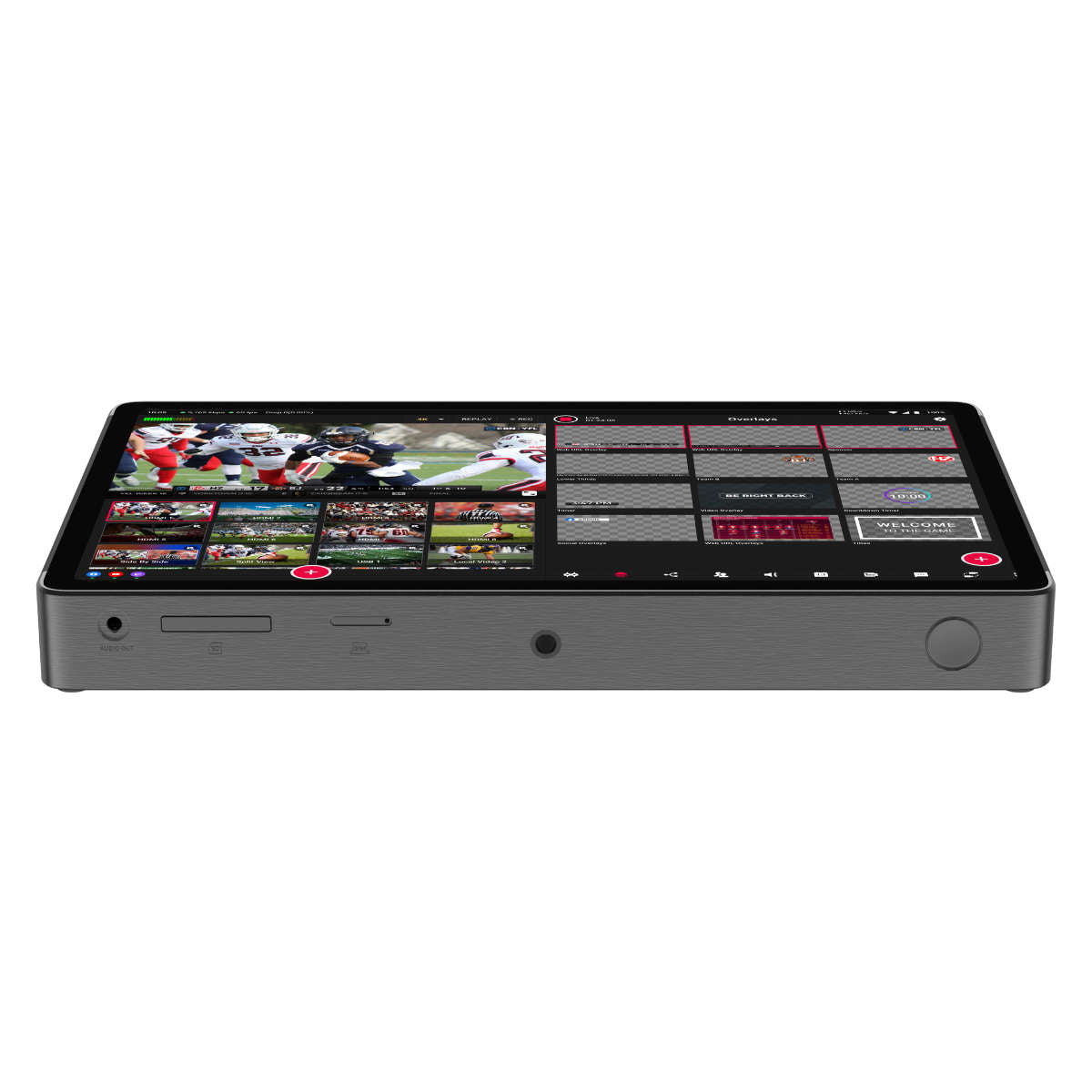

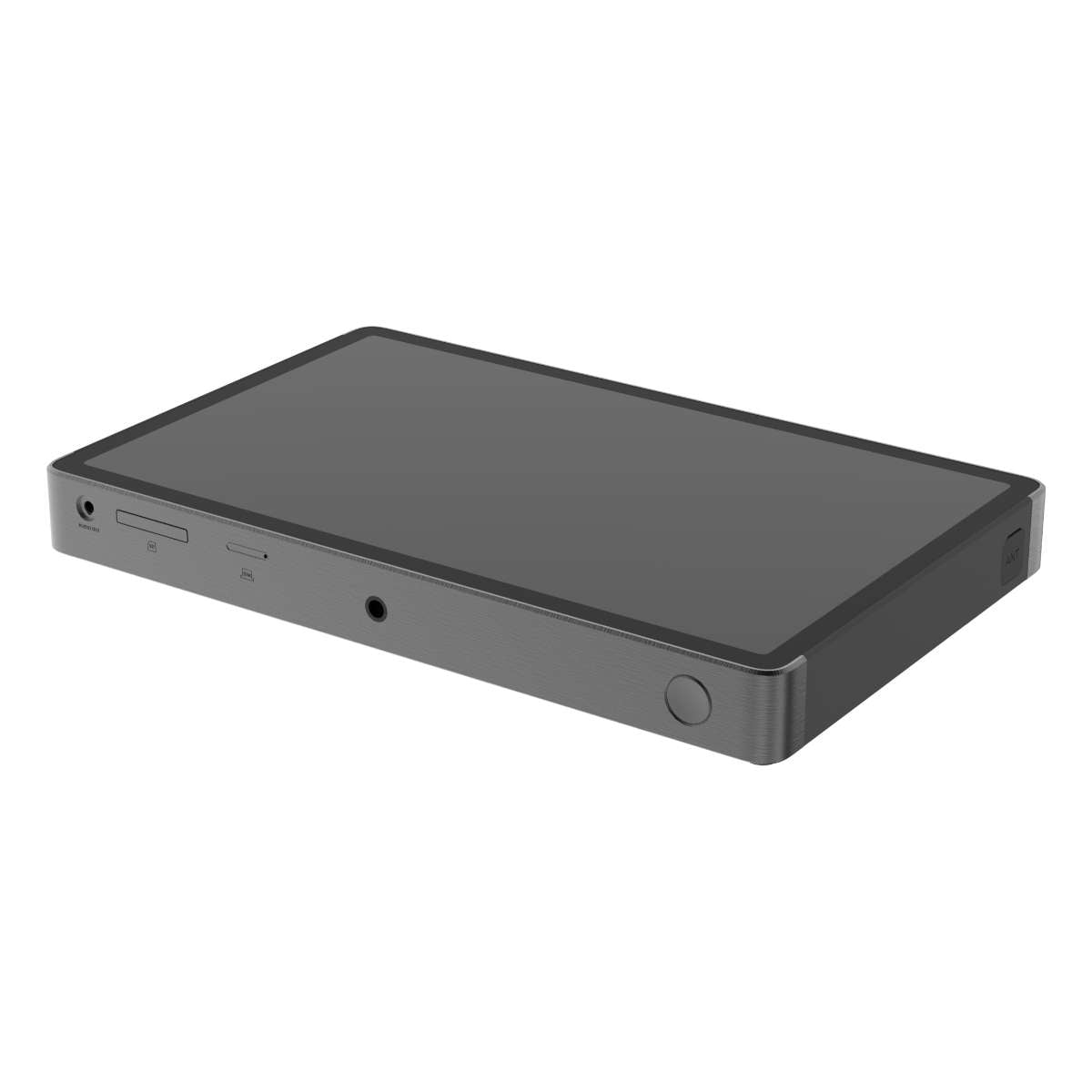

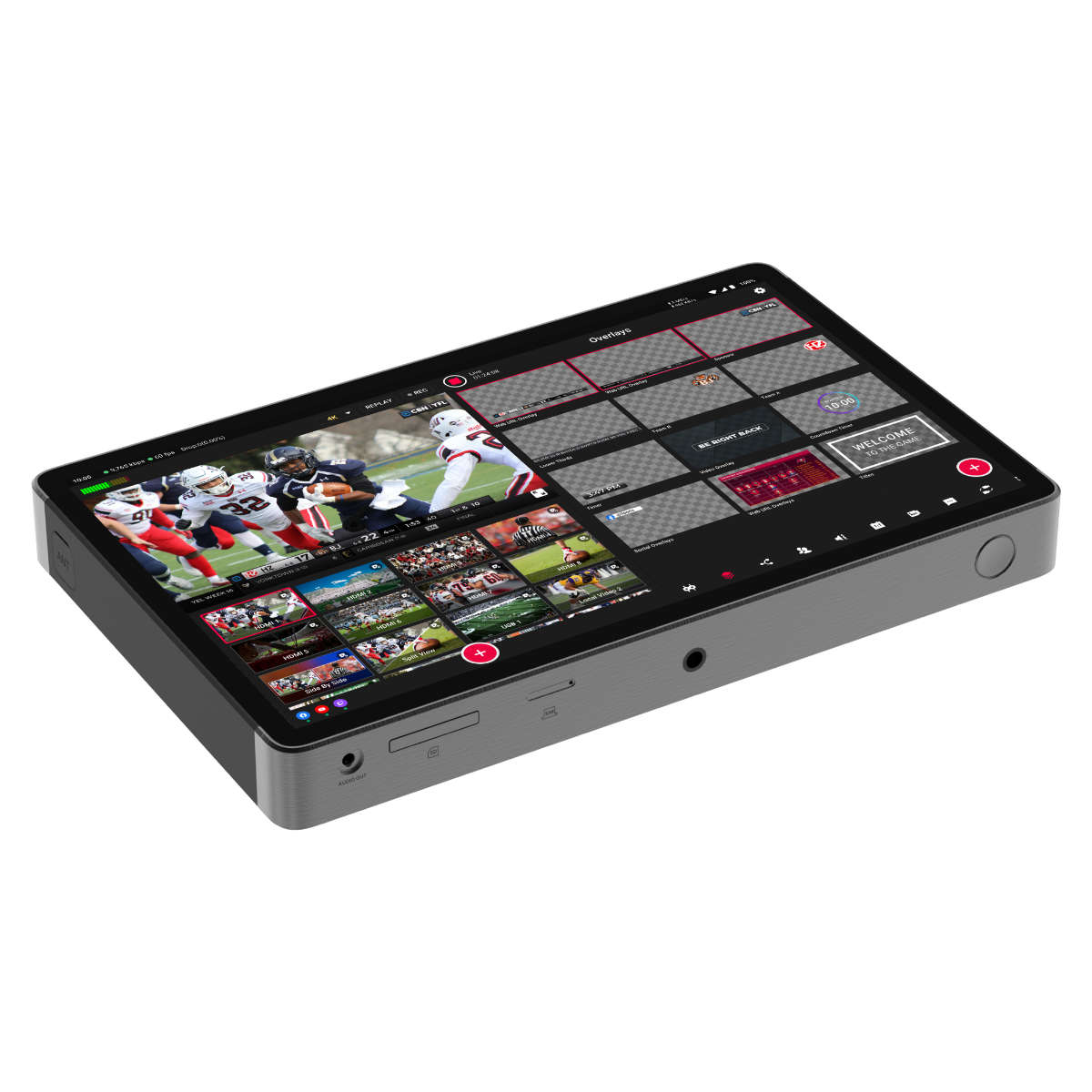

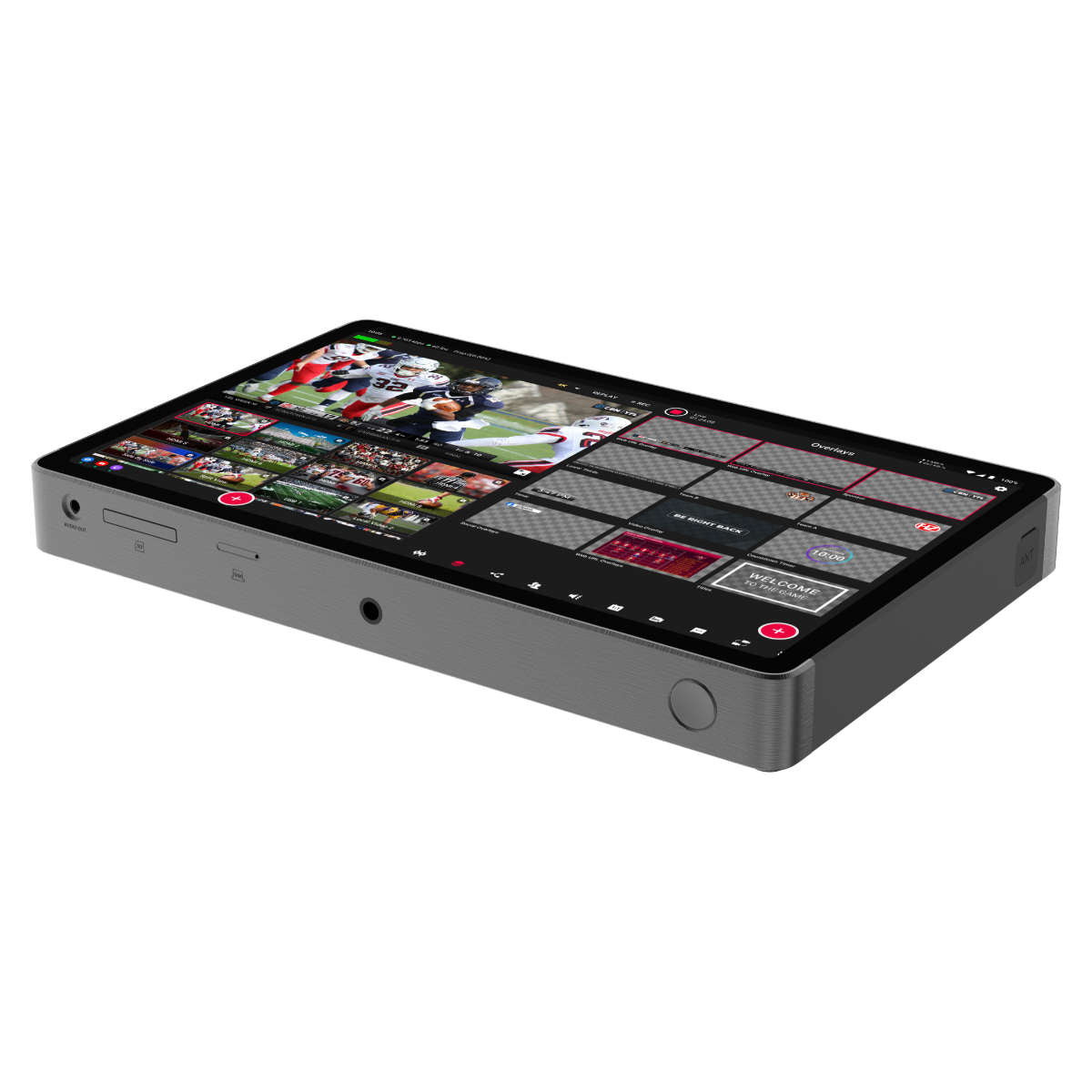

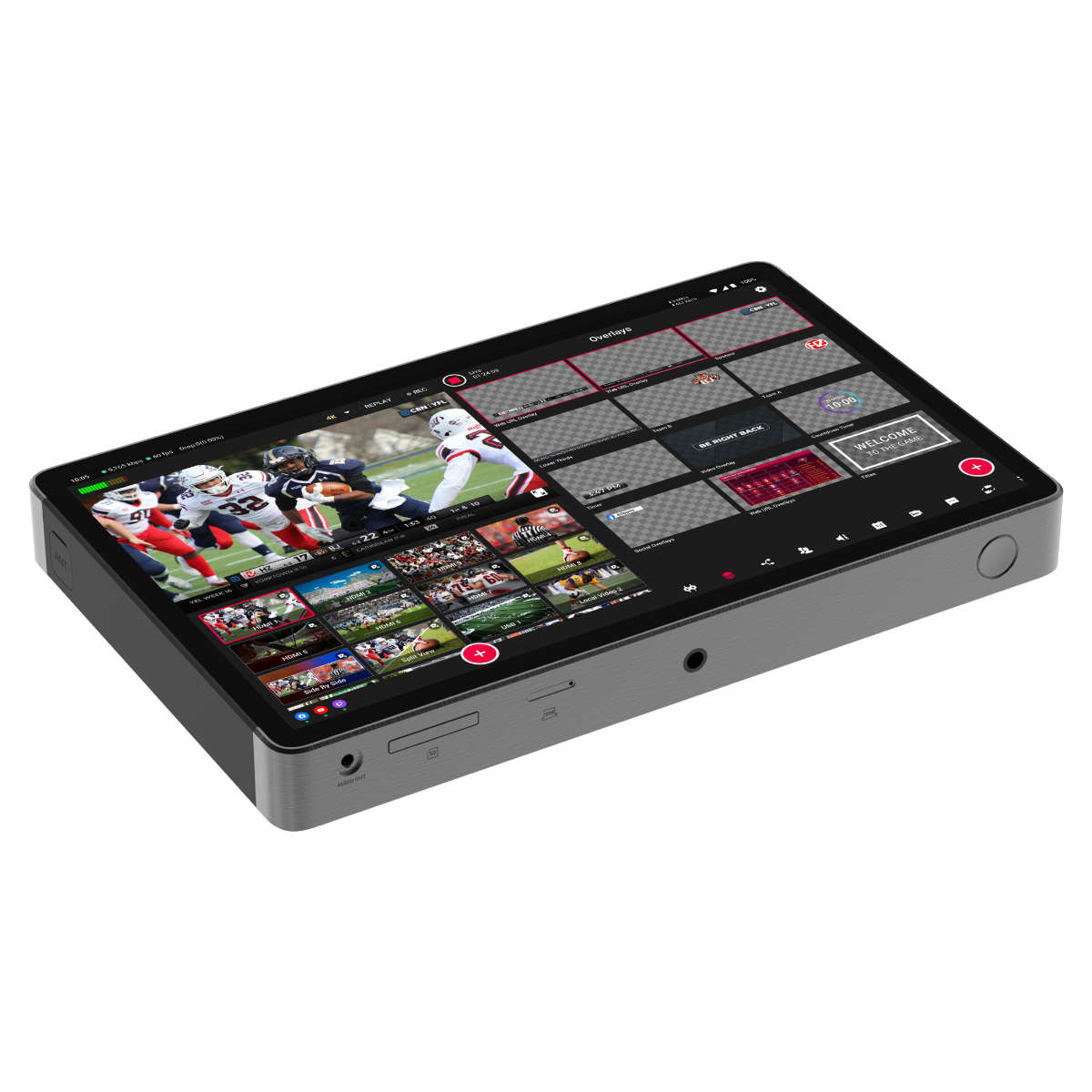

YoloLiv YoloBox Extreme
Features
Live Switch: Easily switch between multiple video sources or fully customized scenes
Audio Mix: Control the volume of your audio sources individually.
ISO Recording: Record all video inputs as well as the program video and save them separately.
Graphic overlays: Add logos, lower thirds, titles, countdown timers

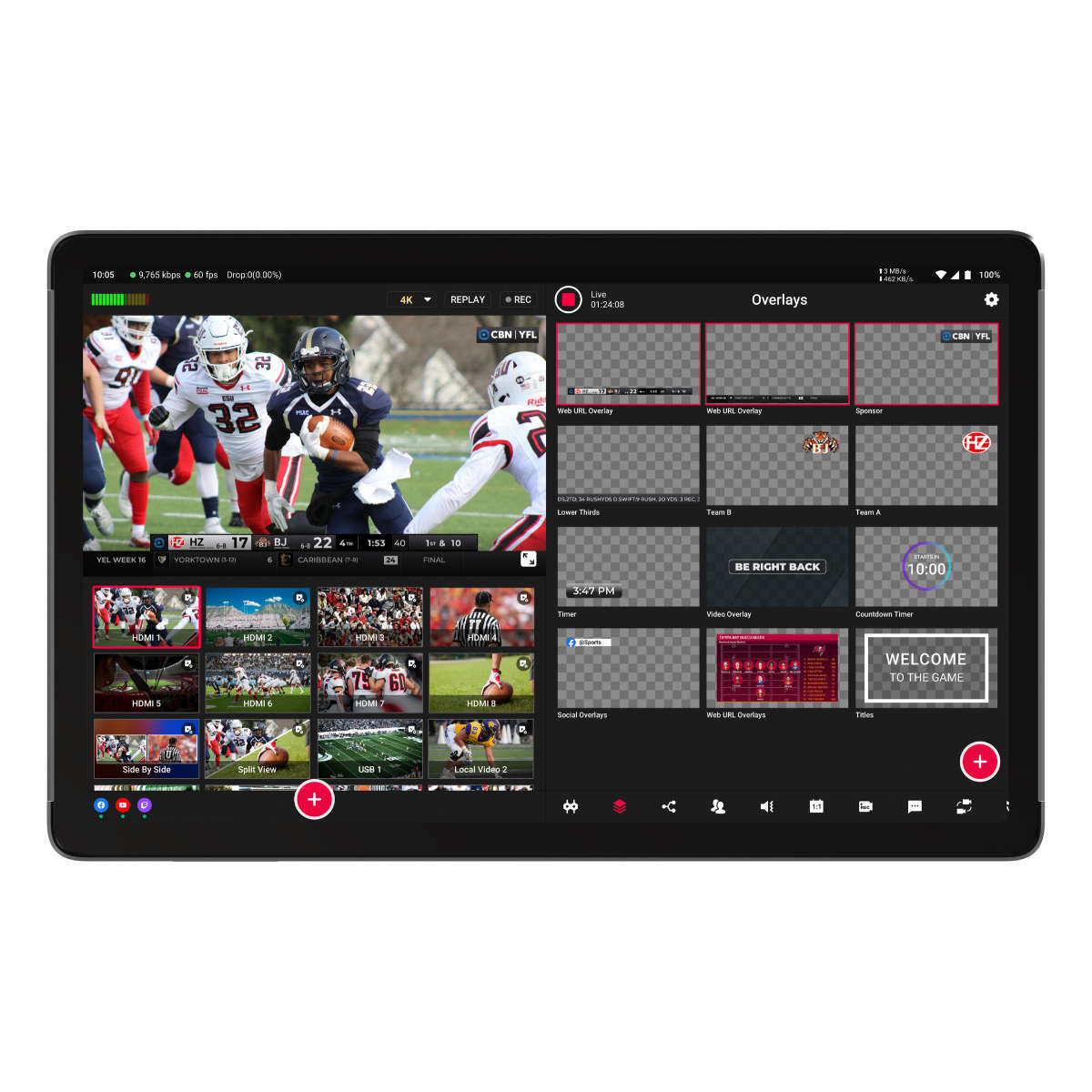

MultiViews: Customize the layout of your live stream with integrated MultiViews.
Count the score: Just like in soccer matches, you can display the score in real time. The colors are freely configurable. You can even include game/team logos.
MultiCam Playback: Create highlight clips with preset video durations, intros, outros, and more – easily with just a few clicks.
Invite guests: Start a real-time conversation with guests remotely via a web browser on mobile devices.
PTZ control: You can preset up to five camera positions, allowing you to quickly switch between different angles and views.
Technische Details
Main features
8 HDMI inputs: Supports up to 4K60 with integrated scaler.
2 HDMI outputs: Assignable for program output or multiview in 4K.
ISO Recording: Simultaneous recording of up to 4x 4K30 or 6x 1080P60 sources.
True 4K streaming capability: For razor-sharp live broadcasts.
Stream via Ethernet, Wi-Fi, 4G LTE, USB dongle*
Network bonding with up to 3 SIM cards* + Wi-Fi + Ethernet (*There is a slot for a micro SIM card, the other two can be connected via USB dongles. SIM cards and dongles are not included. You can book the required cloud service directly from YoloLiv. Linked below.) Supported formats: H.264 & H.265
NDI license integrated (up to 8 sources possible)
11.2-inch display: With 2.5K resolution and 120Hz refresh rate for clear and smooth display.
MultiCam Instant Replay: Supports 6 cameras at 1080P60 or 4 cameras at 4K30.
External antenna: Provides a wireless range of up to 90 meters and stable connectivity.
Long battery life: Up to 10 hours of operation for longer live events.
Technical details
Processor: Qualcomm 8Gen2
Operating system: Android
Inputs: 8x HDMI (up to 4K60)
Outputs: 2 HDMI outputs, flexibly assignable.
Display: 11.2 inches with 2.5K resolution and 120Hz refresh rate.
Network: Supports wired and wireless connections with external antenna for extended range.
Battery life: Up to 10 hours for extended live productions.

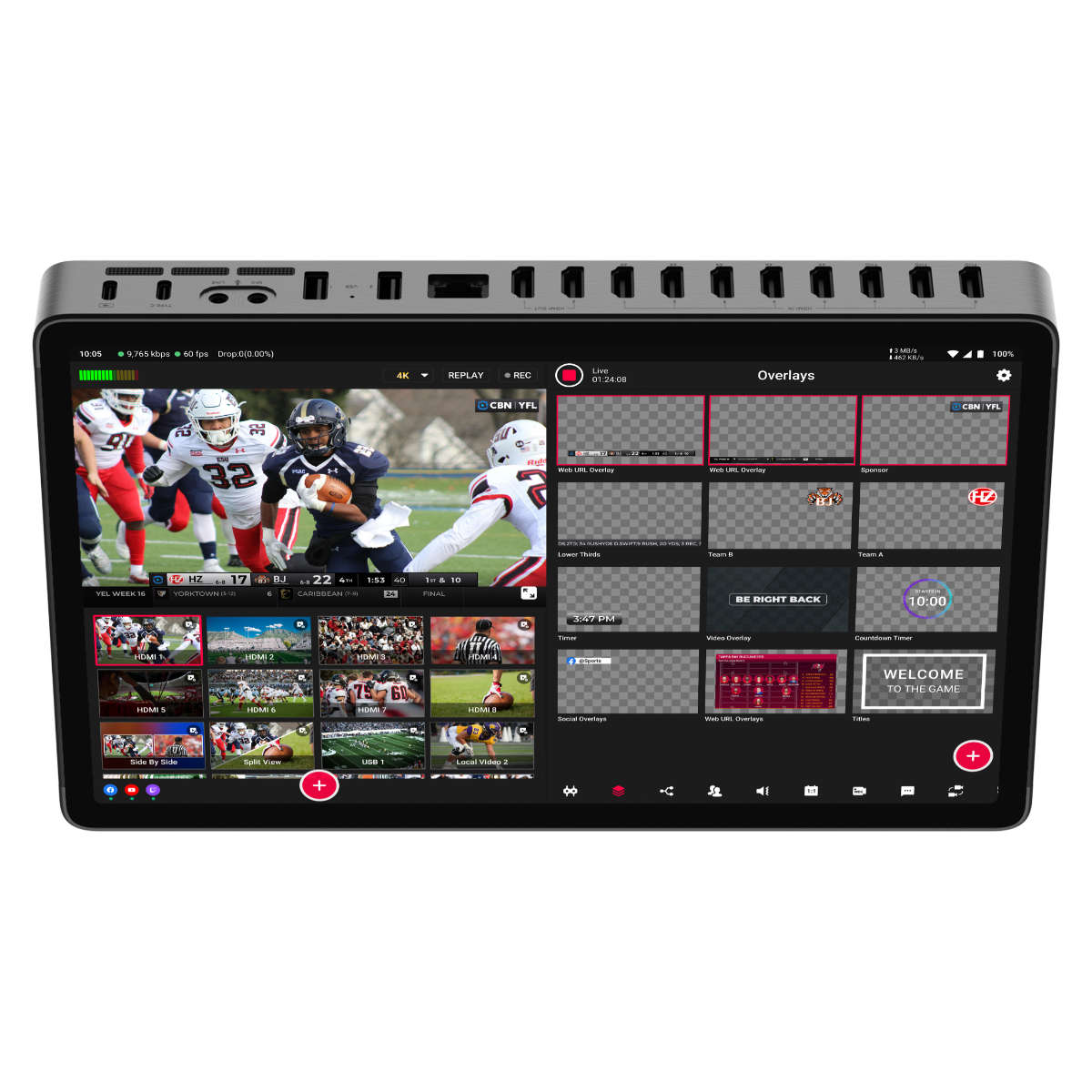

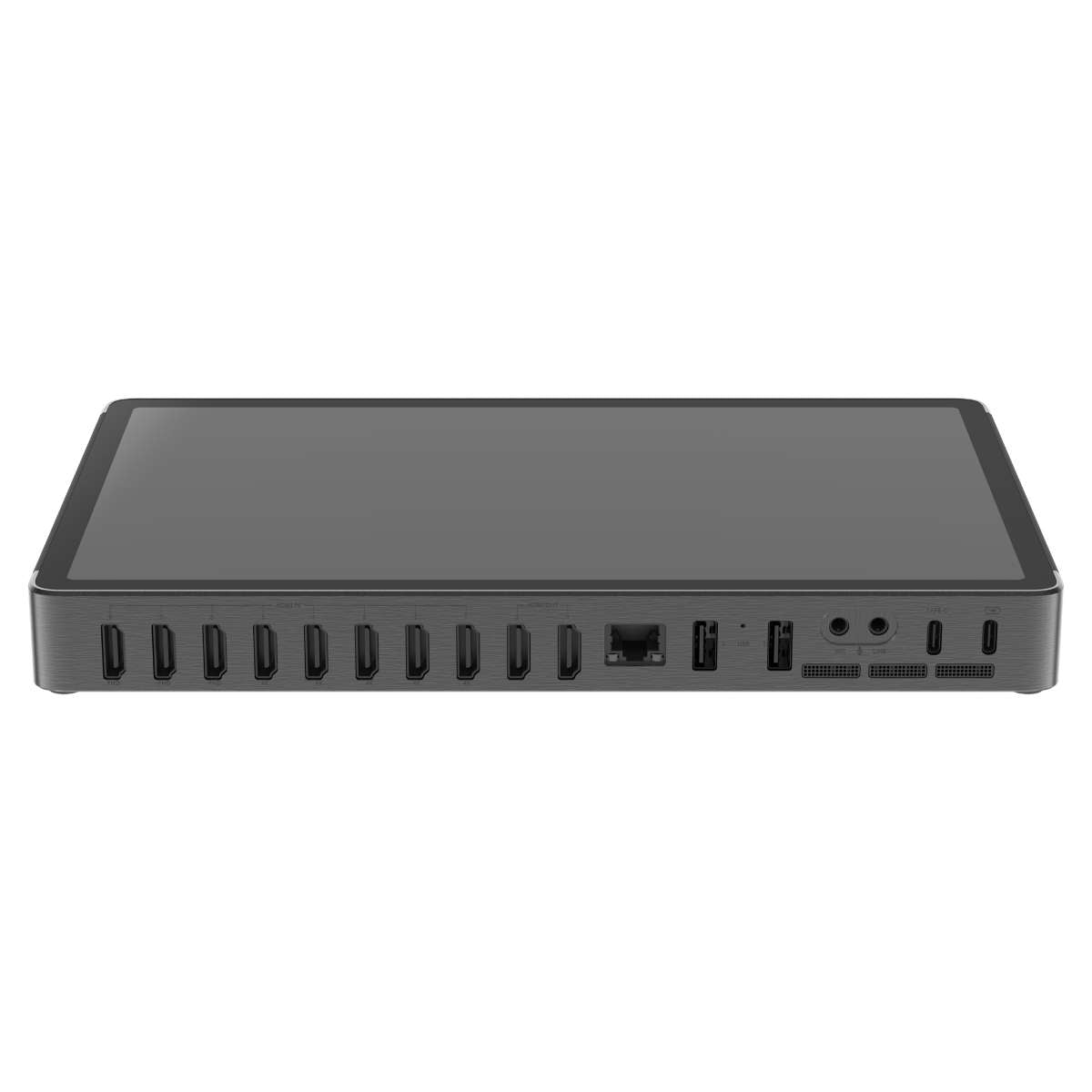

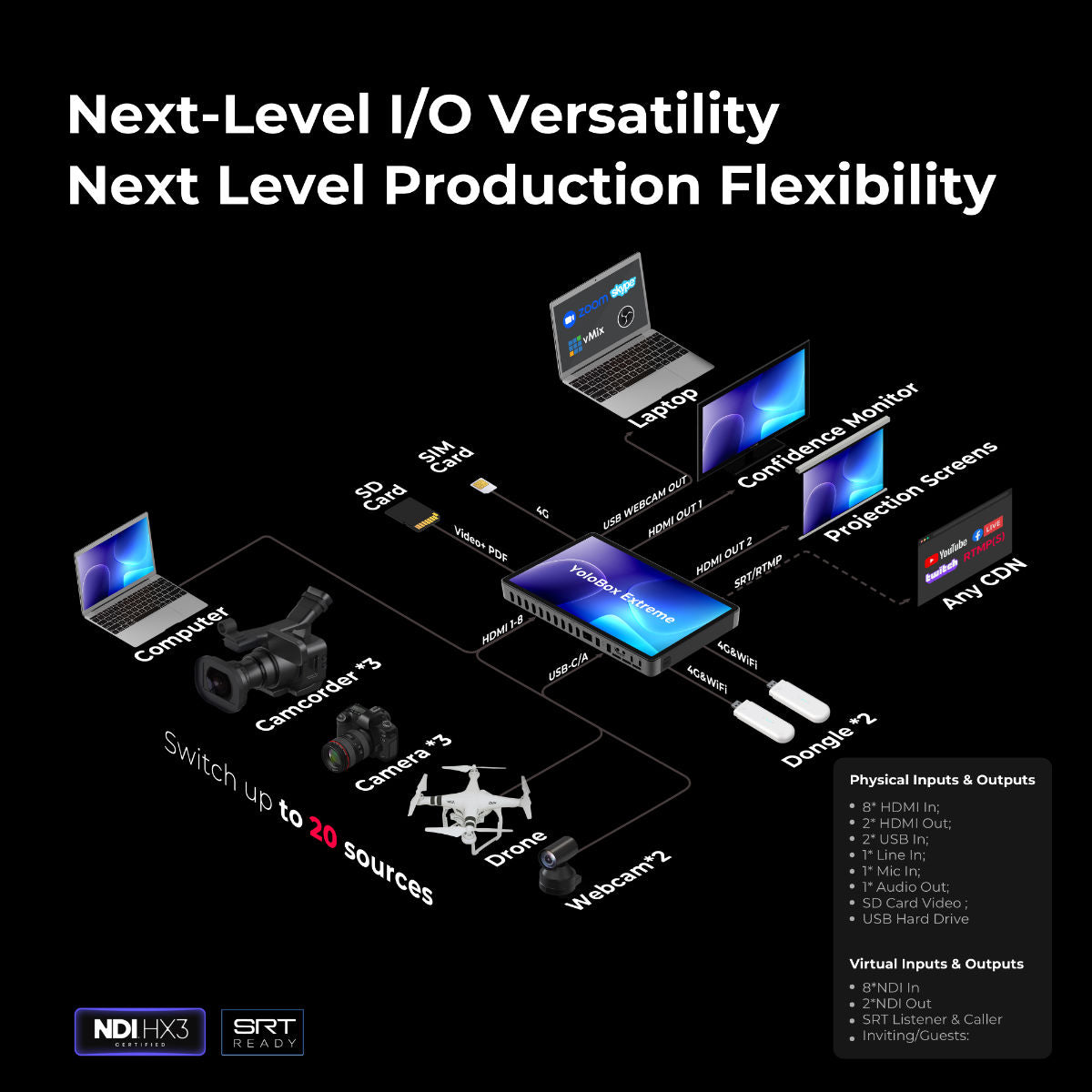

Entrances in detail
HDMI inputs (8x): Supports resolutions up to 4K60, with integrated video scaler for flexible source inputs.
USB input: Compatible with USB cameras or other video sources.
SD card slot: Allows playback of pre-recorded videos or overlays.
Audio input (3.5 mm jack): For external microphones or audio sources.
Network input (RJ45): For wired Internet connections, ideal for stable streams.
SIM card slot: Enables mobile streaming over LTE networks.
Wi-Fi support: For wireless network connections and NDI streams.
NDI Input: Low-latency wireless video transmission for up to 8 NDI sources.
Exits in detail
HDMI outputs (2x): Program output: Transmits the final, switched video feed to external displays or projectors. Multiview output: Shows an overview of all video sources for better control and monitoring.
USB-C output: For connecting to computers for additional functionality or streaming.
Audio output (3.5 mm jack): For external speakers or audio monitoring.
NDI Output: Wireless output over IP networks for compatible devices and workflows.
