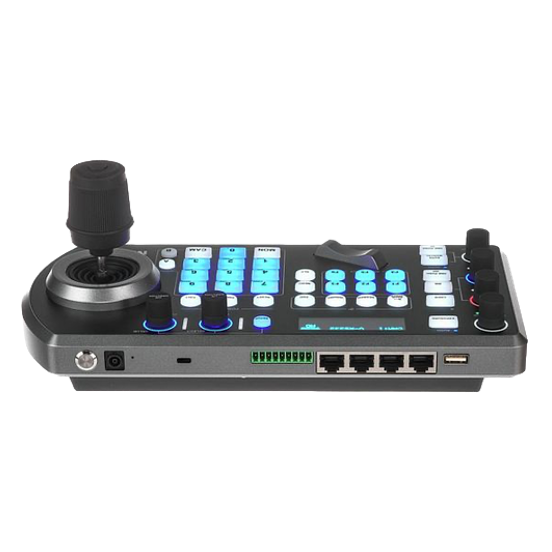

Marshall VS-PTC-IP camera controller

The Marshall VS-PTC-IP PTZ is designed for seamless operation of multiple camera protocols on a single network. Used for studio productions and live events, the controller offers detailed control via a high-quality PTZ joystick, a professional zoom, and several individual fine-tuning knobs for different focal points within a shot.

The controller offers the flexibility to configure up to 7 cameras via RS232, 14 cameras via RS422, and 255 cameras via IP. The "Easy IP Camera Discovery" feature automatically searches for all available IP cameras on a network. The VS-PTC-IP can store up to 6 selectable function keys and up to 256 camera presets. Dedicated rotary knobs and control buttons simplify direct access to frequently used functions without having to use the camera's menus.

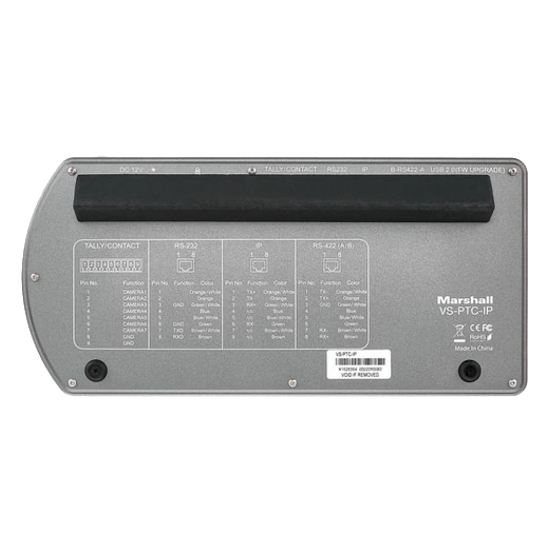

Connections
- 12V DC
- Tally
- RS-232 (RJ-45)
- LAN / IP (RJ-45)
- RS-422 (2x RJ-45)
- USB (firmware updates)

Power supply
- DC 12V
- POE (via IP port and RS422/232)

Special features of the controller
- IP PTZ Controller
- Compatible with all PTZ cameras that support IP RS232/RS422/RS485
- Up to 14 cameras can be controlled via VISCA (divided into 2 groups of 7 cameras each)
- Joystick control for fine adjustment of the cameras
- Up to 256 camera positions can be saved

Dimensions and weight
- 132mm (H) x 395mm (W) x 278mm (D)
(Height including joystick 116mm)
- 1000g

Network protocols
- ONVIF, VISCA Over IP, VISCA (RS232/422), Pelco D/C
