Marshall CV630-IP 4K PTZ Camera

Thanks to its high-quality 8.5-megapixel 1/2.5-inch sensor, it delivers impressive images in a maximum resolution of 4K at 30 frames per second. The camera features a 30x optical zoom, which, combined with the sensor, enables outstanding capture and display of every detail in the highest quality.
The Marshall CV630-IP offers the ability to deliver multiple video streams simultaneously via HDMI, 3G-SDI, and IP. It can be powered via either a power adapter or Power over Ethernet (PoE). Thanks to its high-quality sensor and integrated image noise reduction, the camera delivers clear and crisp images even in challenging lighting conditions.

Image sensor
- 1/2.5 UHD
- 8.5 megapixels

Resolution and frame rate
- HDMI / IP
3840 x 2160p (25 / 29.97 fps)
1920 x 1080p (60 / 59.94 / 50 / 29.97 /25 fps)
1280 x 720p (60 / 59.94 / 50 / 29.97 /25 fps)

- 3G-SDI
1920 x 1080p (60 / 59.94 / 50 / 29.97 /25 fps)
1280 x 720p (60 / 59.94 / 50 / 29.97 /25 fps)

Zoom function
- 30x optical zoom

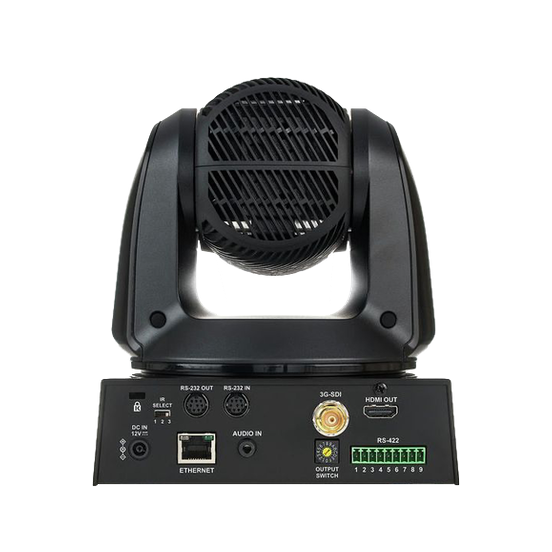

Connections
-RS-232 OUT / IN
- 3G-SDI
- HDMI
- RS-422
- Audio IN
- LAN
- DC 12V

Video compression formats
- YUY2, H.265, MJPG and H.264

Network protocols
- RTSP/RTMP, ONVIF, GBT28181, Visca

Dimensions and weight
- 195mm (H) x 175mm (W) x 190mm (D)
- 1605g

Power supply
- DC IN 12V
- POE+

Scope of delivery
- Infrared remote control
- Power supply & power cable
- Adapter plate for ceiling mounting
