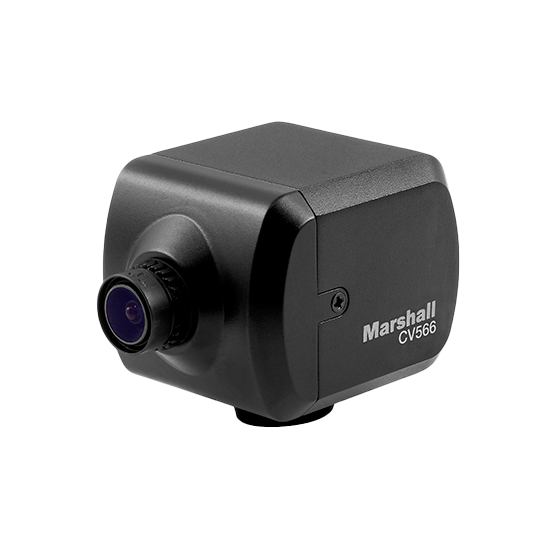

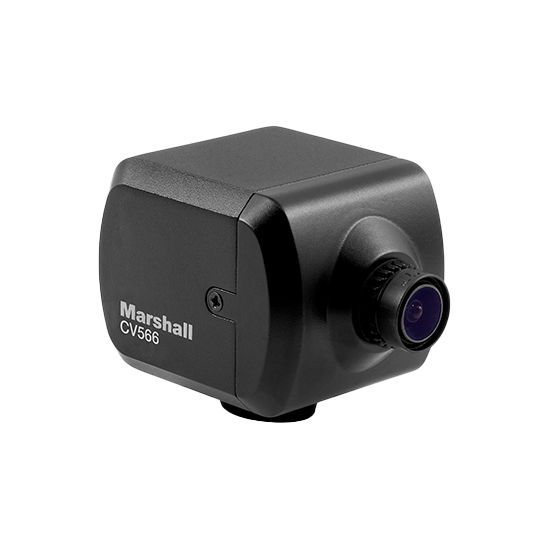

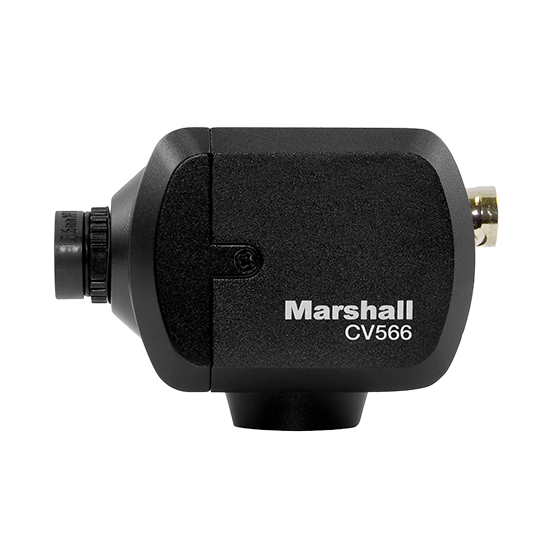

Marshall CV566 Mini Camera

Equipped with an excellent 1/2.8-inch sensor and 2.2 megapixels, the Marshall CV-566 delivers clear images in a resolution of up to 1920 x 1080p at 60 frames per second.

All recordings can be output simultaneously via 3G-SDI and HDMI, and the genlock function allows us to synchronize multiple cameras with frame accuracy.
On the rear of the camera is a BNC output (3G-SDI) and a lockable I/O connector for power, control, and stereo audio input. The camera's day/night mode can be activated automatically or manually using the IR filters.

The remote control and image adjustment commands are provided either via a conventional RS485 connection (Visca) or via the OSD menu joystick on the lockable breakout cable.

Image sensor
- 1/2.8 SONY CMOS
- 2.2 megapixels

Resolution and frame rate
- 3G-SDI / HDMI
1920 x 1080p (60 / 59.94 / 50 / 29.97 /25 fps)
1280 x 720p (60 / 59.94 / 50 / 29.97 /25 fps)

Connections
- 3G-SDI
- HDMI
- RS-485
- USB (firmware updates)
- 3.5mm stereo audio input
- 12V DC

Dimensions and weight
- 47mm (H) x 44mm (W) x 56mm (D)
- 115g

Special features
- Genlock
- Versatile image settings: White Balance, Exposure, Brightness, Contrast, Saturation, Hue, Gamma, Sharpness
- Day/Night mode
- Compact & robust housing

Power supply
- 12V DC

Scope of delivery
- 3.6mm lens
- Breakout cable
- Power supply
