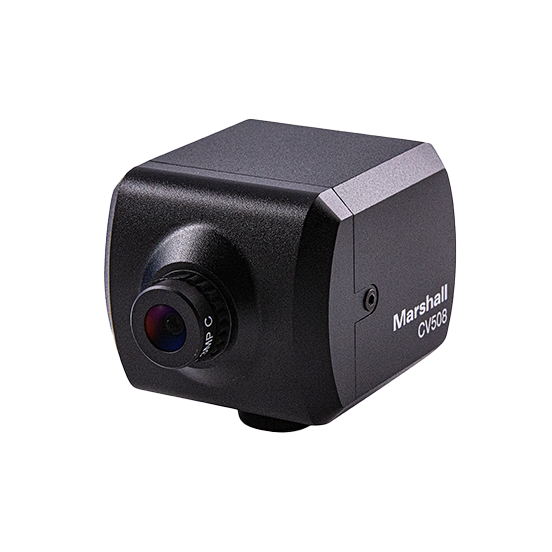

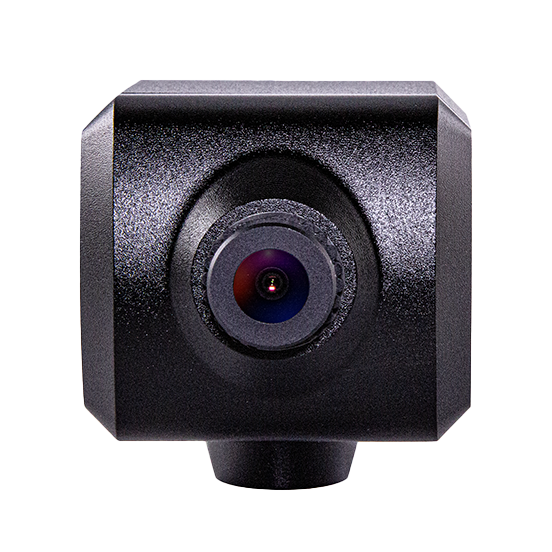

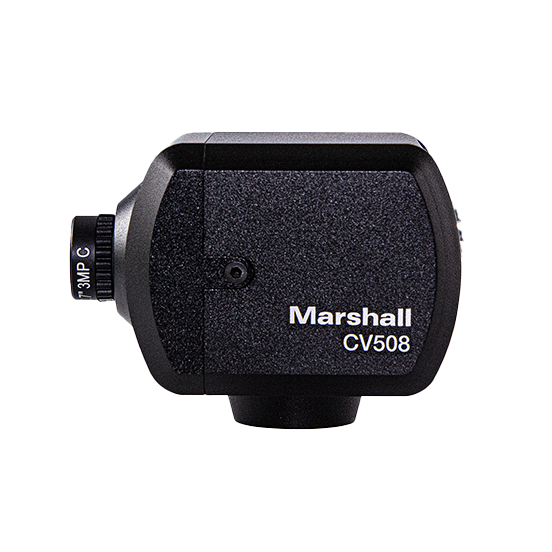

Marshall CV508 Mini Camera

Equipped with a powerful 1/2.8-inch sensor and 2.5 megapixels, the Marshall CV-508 delivers high-quality and clear images in a resolution of up to 1920 x 1080p at 60 frames per second.

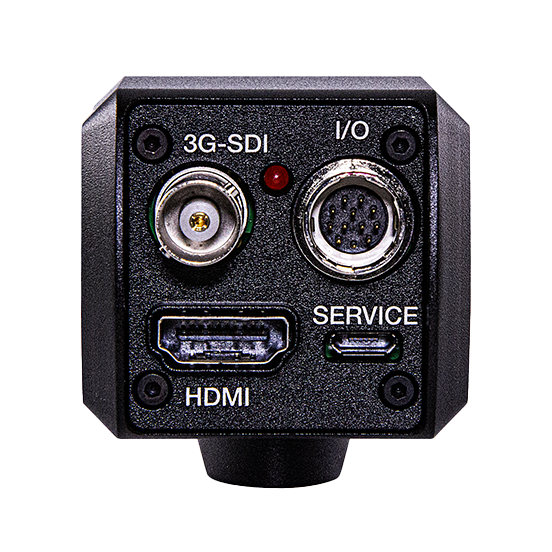

On the rear of the camera, there's a BNC output (3G-SDI) and a lockable I/O connector for power, control, and stereo audio input. An HDMI connector can also be used for video transmission, allowing simultaneous recording via SDI and HDMI.

Remote control and image adjustment commands are provided either via a conventional RS485 connection (Visca) or via the OSD menu joystick on the lockable breakout cable. A variety of image adjustment settings such as color (red/blue), white balance, exposure, gain control, black level (black), white clip, gamma, and more are available and can be conveniently adjusted remotely.

Image sensor
- 1/2.8 SONY CMOS
- 2.5 megapixels

Resolution and frame rate
- 3G-SDI / HDMI
1920 x 1080p (60 / 59.94 / 50 / 29.97 /25 fps)
1280 x 720p (60 / 59.94 / 50 / 29.97 /25 fps)

Connections
- 3G-SDI
- HDMI
- RS-485
- USB (firmware updates)
- 3.5mm stereo audio input
- 12V DC

Dimensions and weight
- 47mm (H) x 44mm (W) x 56mm (D)
- 110g

Special features
- Versatile image settings: White Balance, Exposure, Brightness, Contrast, Saturation, Hue, Gamma, Sharpness
- Day/Night mode
- Compact & robust housing

Power supply
- 12V DC

Scope of delivery
- 3.6mm lens
- Breakout cable
- Power supply
