Marshall CV504 Mini Camera

The Marshall CV504 mini camera combines performance, quality, and flexibility in a compact package. Equipped with a state-of-the-art 1/2.8-inch sensor and 2.5 megapixels, it delivers razor-sharp images in resolutions up to 1920 x 1080p at 60 frames per second.

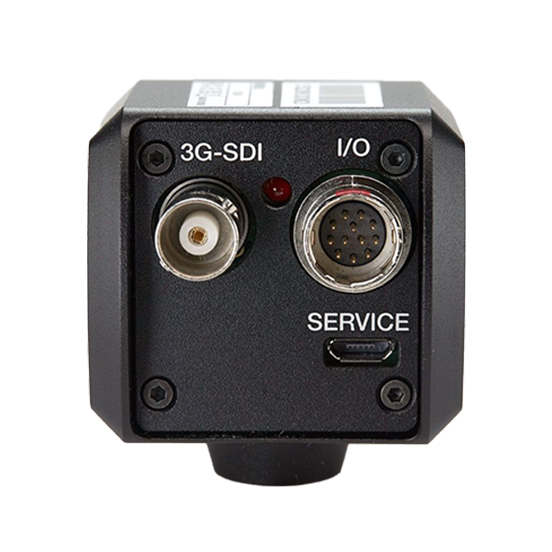

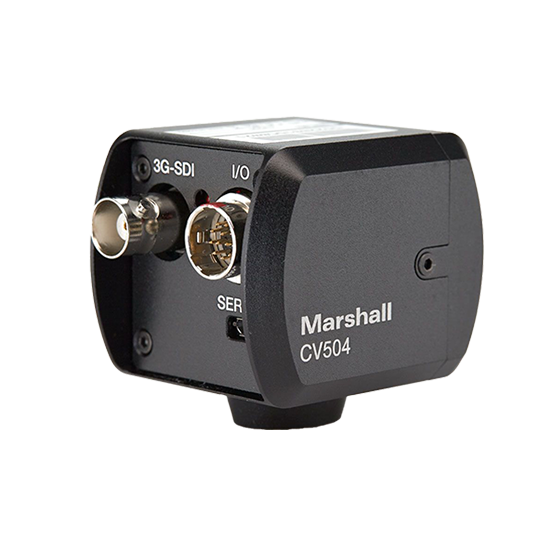

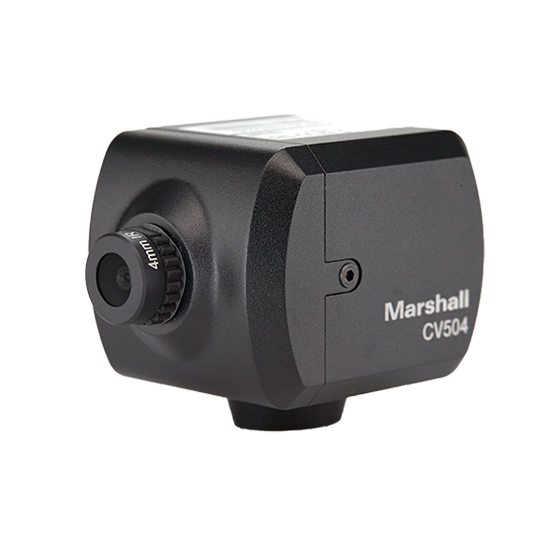

The rear of the CV504 features a BNC output (3G-SDI) and a lockable I/O connector for power, control, and stereo audio input. Thanks to the threaded M12 lens mount, the camera offers a wide range of fixed focal length and varifocal lenses.

In addition to the Tab/Night mode, which can be selected automatically or manually, remote control and image adjustment commands can be made either via a conventional RS485 connection (Visca) or via the OSD menu joystick on the lockable breakout cable. A variety of image adjustment settings such as color (red/blue), white balance, exposure, gain control, black level (black), white clip, gamma, and more are available and can be conveniently adjusted remotely.

Image sensor
- 1/2.8 SONY CMOS
- 2.5 megapixels

Resolution and frame rate
- 3G-SDI
1920 x 1080p (60 / 59.94 / 50 / 29.97 /25 fps)
1280 x 720p (60 / 59.94 / 50 / 29.97 /25 fps)

Connections
- 3G-SDI
- RS-485
- USB (firmware updates)
- 12V DC

Dimensions and weight
- 47mm (H) x 44mm (W) x 56mm (D)
- 110g

Special features
- Versatile image settings: White Balance, Exposure, Brightness, Contrast, Saturation, Hue, Gamma, Sharpness
- Day/Night mode
- Compact & robust housing

Power supply
- 12V DC

Scope of delivery
- 4mm lens
- Breakout cable
- Power supply
