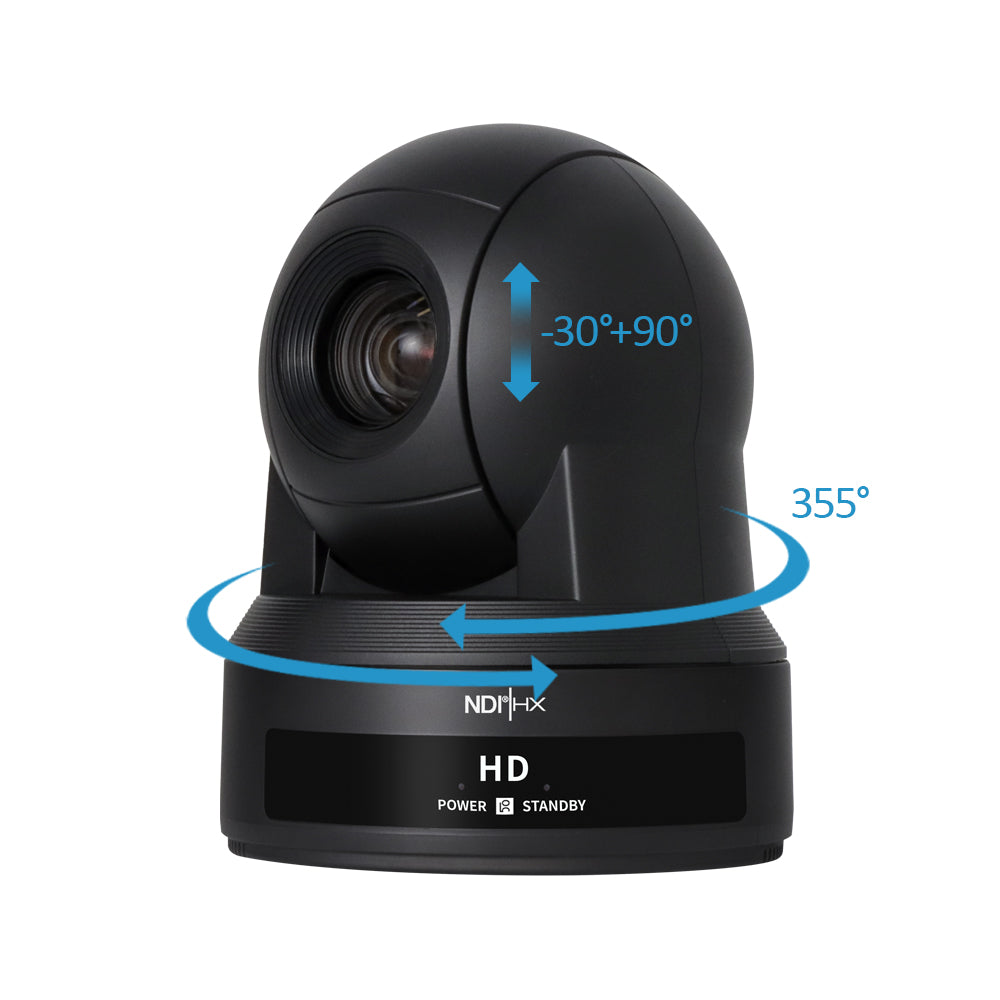

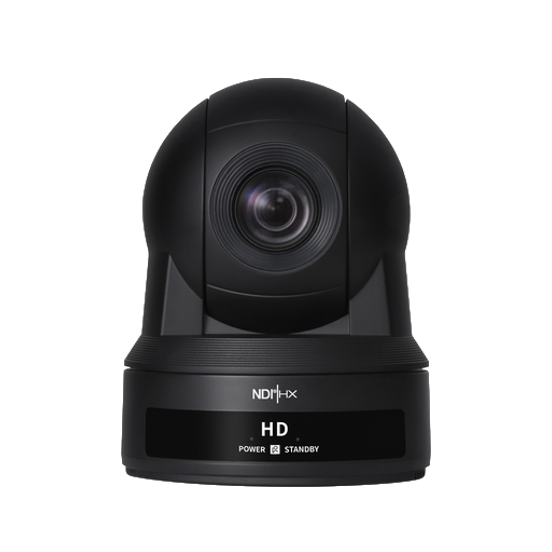

HDKATOV KT-HD61 1080p PTZ camera

With its SONY 1/2.8-inch progressive CMOS sensor, this camera achieves a maximum resolution of 1920x1080/60fps. The integrated 2.07 megapixel sensor and optional 12x or 20x optical zoom deliver detailed videos and enable versatile recording.

The KT-HD61 supports a wide range of network protocols, including ONVIF, SRT, RTSP, and RTMP. This enables seamless integration into various network infrastructures and streaming platforms. With connectivity options such as HDMI, 3G-SDI, LAN, and USB 3.0, the camera is optimally equipped for seamless connection to various devices and systems.

Kato Vision offers the KT-HD61 in versions with 12x or 20x optical zoom to meet individual requirements and application scenarios.

Image sensor
- SONY 1/2.8" SONY Progressive CMOS
- 2.07 megapixels

Resolution and frame rate
- HDMI / 3G-SDI / IP / USB 3.0
1920 x 1080p (60 / 59.94 / 50 / 29.97 /25 fps)
1280 x 720p (60 / 59.94 / 50 / 29.97 /25 fps)

Zoom function
- 12x Optical Zoom HD61R
- 20x Optical Zoom HD61A

Connections
- RS-422
- LINE IN
- RS-232 IN / OUT
- DC 12V
- USB 2.0
- 3G-SDI
- HDMI
- LAN

Video compression formats
- YUY2, H.265, MJPG and H.264

Network protocols
- ONVIF, SRT, RTSP, RTMP


Dimensions and weight
- 190mm (H) x 151mm (W) x 170mm (D)
- 1310g

Power supply
- DC IN 12V
- POE

Scope of delivery
- DC 12V power supply

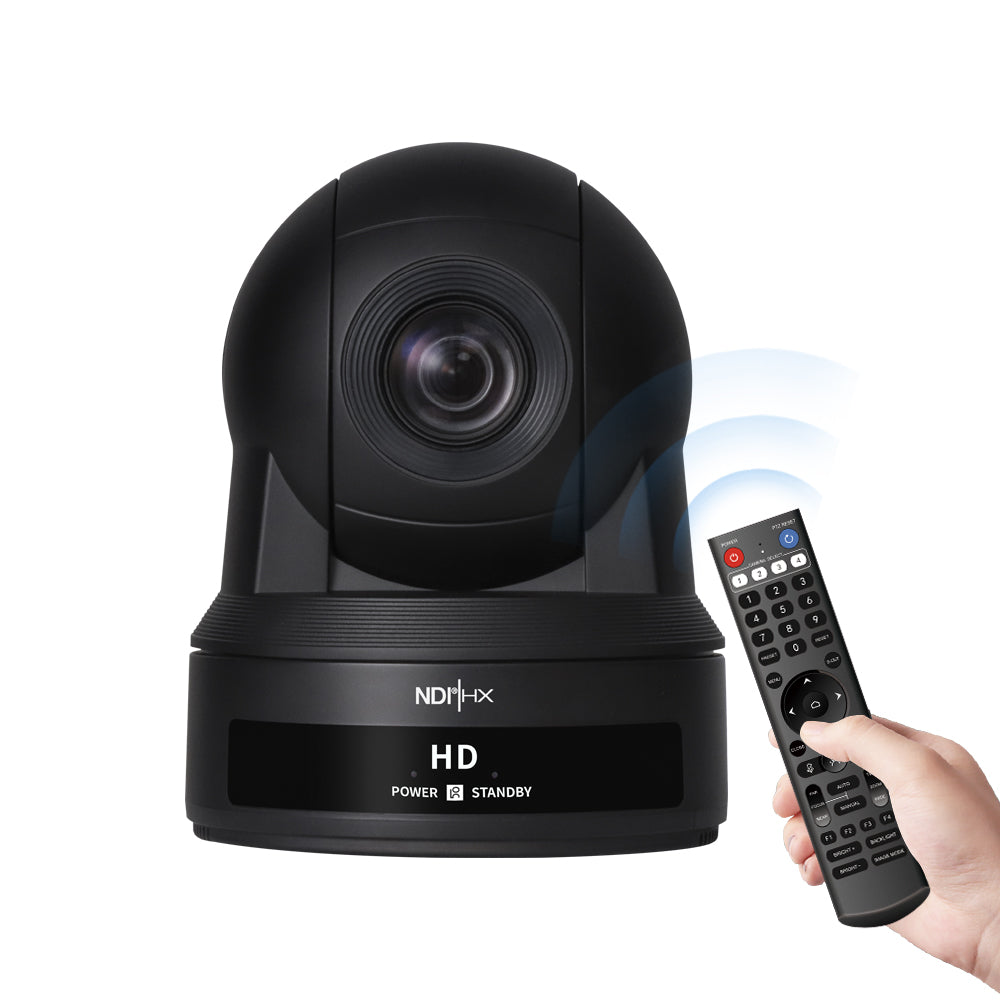

- IR remote control
- Operating instructions
- RS 232 cable
- HDMI cable
- USB cable
- Ceiling mount / mounting kit
