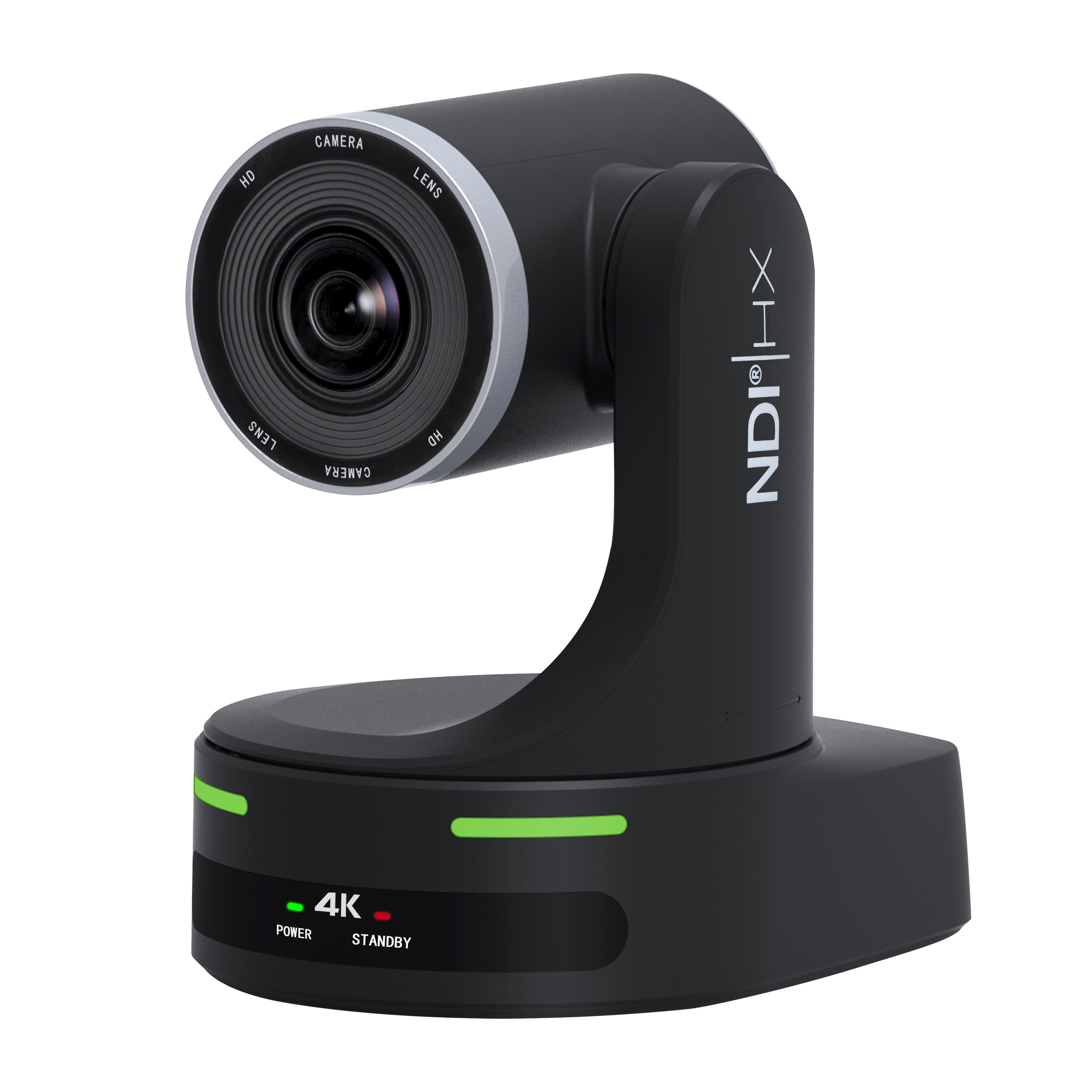

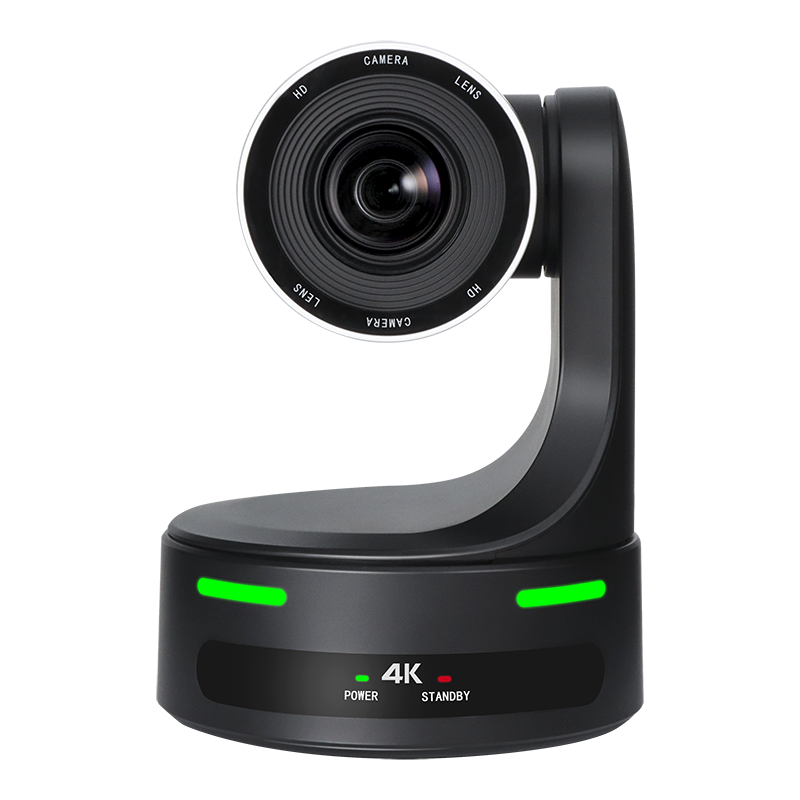

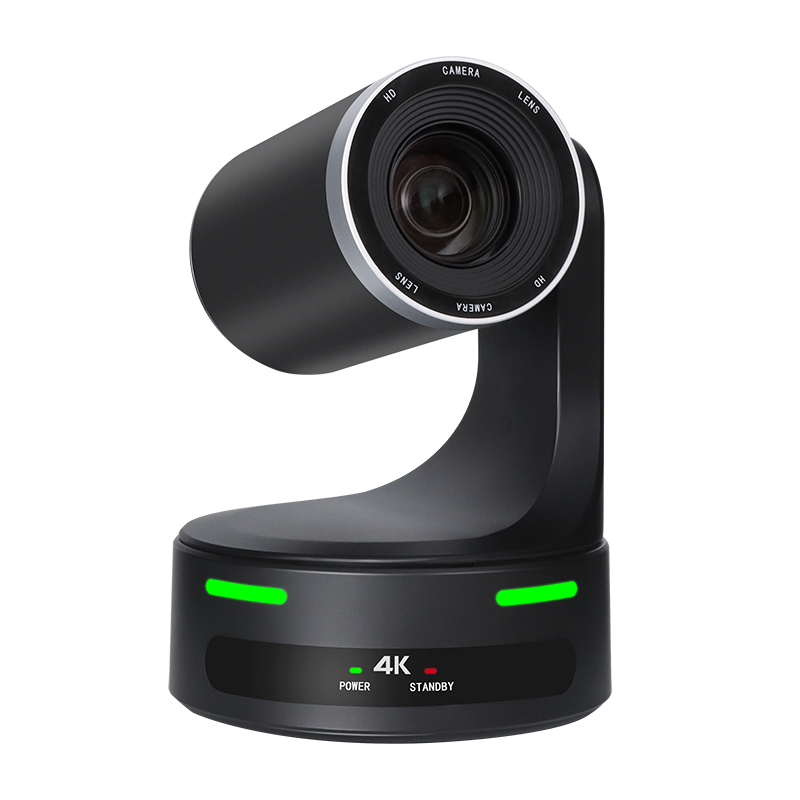

HDKATOV KT-UH86DHN 4K PTZ conference camera

With its Sony 1/2.8-inch progressive CMOS sensor with 8.50 megapixels, it delivers razor-sharp images and recordings at a resolution of up to 3840×2160/30 fps. Thanks to its diverse connectivity options, the camera offers users a wide range of practical applications.

Thanks to the CMOS sensor and 20x optical zoom, the camera performs well even in dark environments, ensuring that participants in conferences or scenes against dark backgrounds continue to be displayed optimally.

Supported video compression formats include YUY2, H.265, MJPG, and H.264. Furthermore, the camera supports various network protocols such as ONVIF, SRT, RTSP, RTMP, and optionally NDI®|HX2.

Image sensor
- 1/2.8" Sony Progressive CMOS
- 8.50 megapixels

Resolution and frame rate
- HDMI / USB 3.0
3840 x 2160p (30/25 fps)
1920 x 1080p (60 / 59.94 / 50 / 29.97 /25 fps)
1280 x 720p (60 / 59.94 / 50 / 29.97 /25 fps)

- 3G-SDI / IP
1920 x 1080p (60 / 59.94 / 50 / 29.97 /25 fps)
1280 x 720p (60 / 59.94 / 50 / 29.97 /25 fps)

Zoom function
- 20x optical zoom
- 16x digital zoom

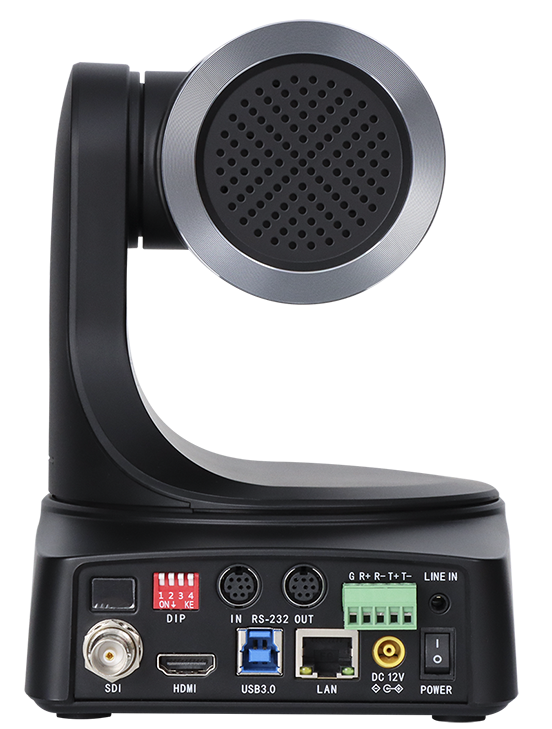

Connections
- RS-232 IN / OUT
- RS-422
- LINE IN
- DC IN 12V
- LAN
- USB 3.0
- HDMI
- 3G-SDI

Video compression formats
- YUY2, H.265, MJPG and H.264

Network protocols
- ONVIF, SRT, RTSP, RTMP, NDI®|HX

Dimensions and weight
- 181mm (H) x 133mm (W) x 161mm (D)
- 1200g

Power supply
- DC IN 12V
- POE

Scope of delivery
- DC 12V power supply
- IR remote control
- Operating instructions
- RS 232 cable
- HDMI cable
- USB cable
- Ceiling mount / mounting kit
