BirdDog Flex 4K IN

The BirdDog Flex 4K IN is an NDI encoder specifically designed for converting HDMI signals to NDI streams. This enables high-quality, low-latency video transmission. The BirdDog Flex 4K IN also offers the following key functions and features:

- 4K NDI Encoder: The BirdDog Flex 4K IN can capture HDMI video signals in 4K resolution and transmit them as an NDI stream over IP networks.

- PoE (Power over Ethernet): The device can be supplied with both data and power via an Ethernet cable, which simplifies installation and reduces cables.

- HDMI input: The Flex 4K IN has an HDMI input to which various video devices such as cameras, computers or game consoles can be connected.

- Tally Lights: Built-in tally lights show which device is currently live or in preview.

- Audio input: In addition to the HDMI audio input, the Flex 4K IN can also record separate audio sources such as microphones or mixers and transmit them together with the video as an NDI stream.

- Web-based control: The device can be configured and monitored via a web interface, allowing easy management and adjustment of settings.

- Compact design: The Flex 4K IN is compact and lightweight, making it ideal for various deployment scenarios.

- Flexible integration: It is compatible with a wide range of production software and hardware that support the NDI protocol and can be seamlessly integrated into existing workflows.

Supported video format
- 2160p @ 30/29.97/25fps
- 1080p @ 60/59.94/50/30/29.97/25fps
- 720p @ 60/59.94/50fps

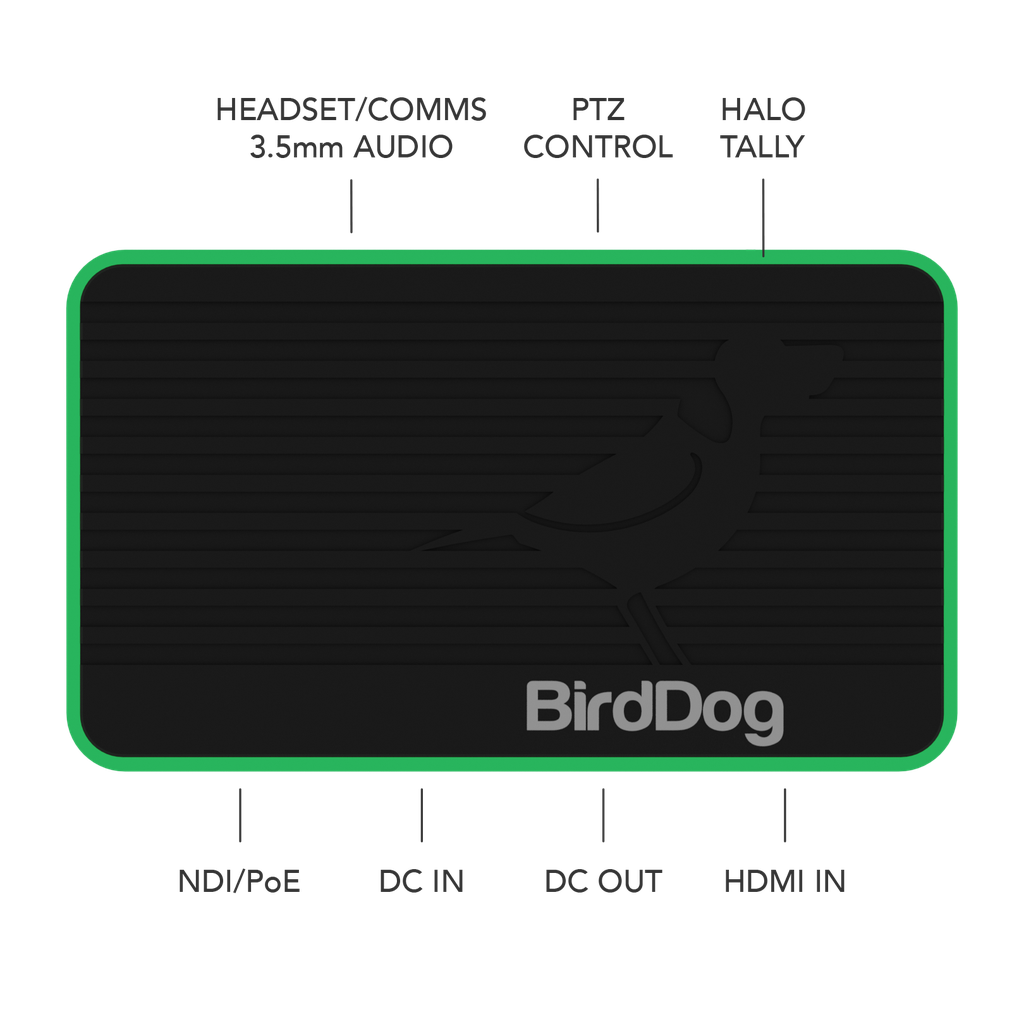

Connections
- HDMI IN
- DC OUT
- DC IN
- LAN connection
- RS-232
- 3.5mm audio

Video inputs
- HDMI 2.0 input

Audio input
- HDMI 2 channels, 48 ​​kHz
- Audio: Stereo headphones/line output

Video codec support
- NDI (full bandwidth I-frame compression)

Tally Light
- Integrated three-color halo tally

Network connection
- RJ45
- POE

Weight and dimensions
- 107x63x31mm
- approx. 140g

Power supply
- POE+ 802.3at
- DC output 12V
