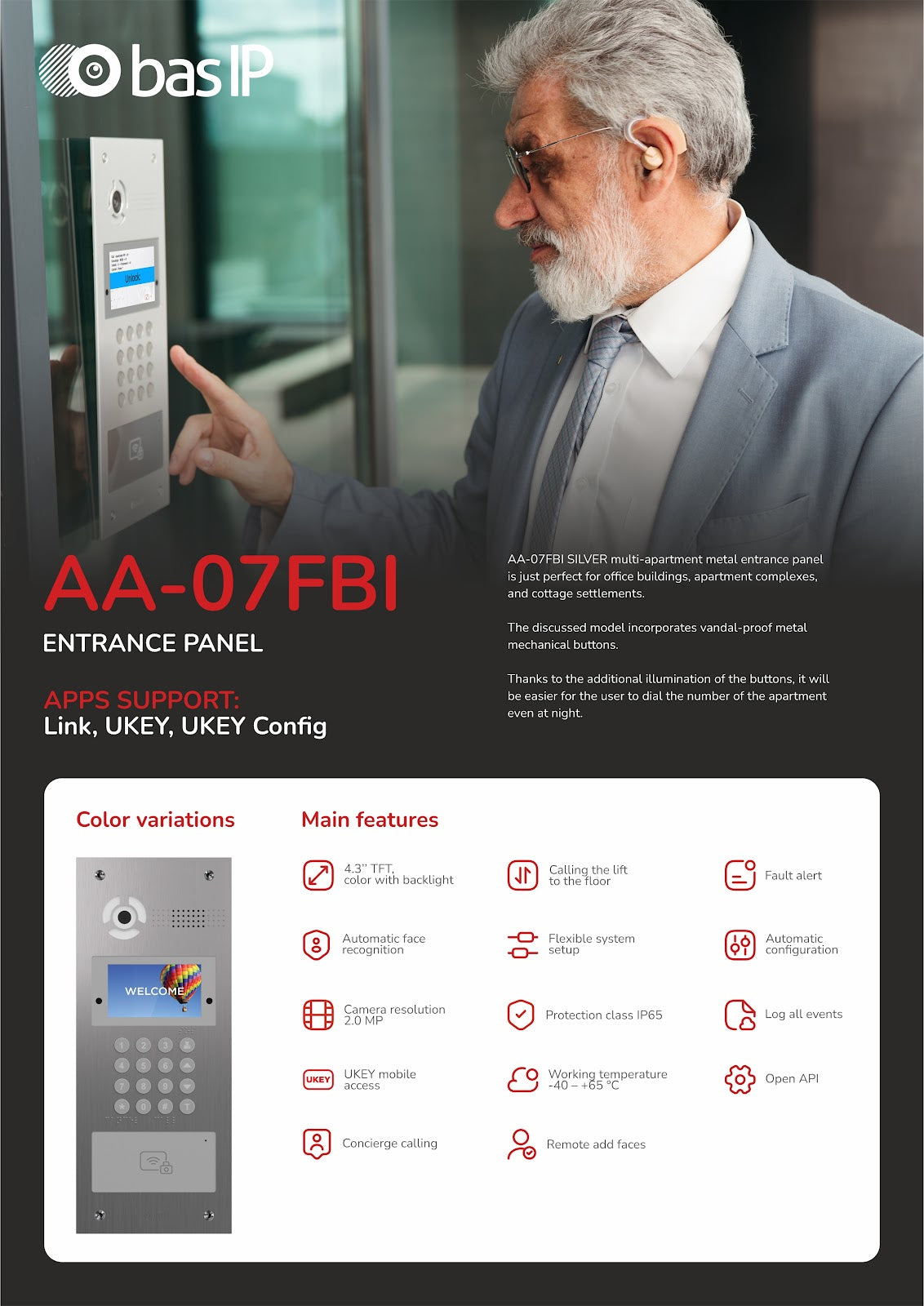

AA-07FBI SILVER
The AA-07FBI is a multi-unit door panel with facial recognition and compatibility with the BAS-IP UKEY mobile access system. It features a backlit TFT color screen and a high-resolution IP camera with wide viewing angles.
This model also features a female TRS jack for connecting an external induction loop for the hearing impaired with a low-frequency audio signal of 1.2 V and 8.2 kOhm. The panel also supports Power over Ethernet (PoE).
Technische Details
Panel type: Multi-family house
Induction loop: Yes
Display: 4.3" TFT, color, with backlight
Resolution: 2.0 Mbps
Camera angle: 110° (horizontal)
Video output: 1080p (1920×1080), H.264 main profile
Night backlight: 6 LEDs
Light sensitivity: 0.01 lux
IK code: IK07
Protection class: IP65
Operating temperature: -40 – +65 °С
Operating humidity: 0% – 86%
Storage humidity: 0% – 60%
Power consumption: 6.5 W, in standby – 3.6 W
Power supply: +12 V DC (+8% -4%)
Housing: aluminum
Colors: Silver
Dimensions: 155×375×55 mm
Mounting: Flush mounting, wall mounting with BR-AA
Keyboard: Mechanical keys with backlight
Case dimensions: 431×200.5×97 mm
Gross weight: 2.68 kg
Interface: Multilingual, WEB interface
Lock opening:
• Via a monitor
• Identification via facial recognition
• Via QR code
• Via guest link
• By PIN
• By access card
• By license plate
• The BAS-IP Link app
• The BAS-IP Intercom app
• The BAS-IP UKEY app
• Via API
Access control:
• Facial recognition
• UKEY (EM-Marin/MIFARE®/NFC/Bluetooth)
• Multi-factor authentication
Supported standards:
• BLE (Bluetooth Low Energy): 2.45GHz Bluetooth 4.x, Bluetooth 5.x.
• Mifare®, 13.56 MHz ISO14443A: Mifare®Standard, Mifare®Hi-Memory, Mifare®Ultralight, Mifare®Classic 1K/4K, Mifare®Classic 7UID, Mifare® Plus SL1 and SL3
• NFC, 13.56MHz: ISO 14443/15693
• Cards 125 kHz: ASK and FSK
Reading range:
• NFC, Mifare cards and 125 kHz cards – up to 5 cm
• BLE – adjustable 10 cm – 10 m
Call elevator to floor: Yes
Facial recognition identifiers: 10,000 faces
Identifiers in the panel memory (QR codes, cards, key fobs, UKEY, access codes): 20 000
Onvif (Profile S): Yes
Integration with ACS: Wiegand
Integrated Wiegand output for card, key fob and UKEY identifiers: 26, 32, 34, 37, 40, 42, 56, 58, 64, 80 bit
Output for connecting an external induction loop for the hearing impaired: Low-frequency audio signal 1.2 V; 8.2 kOhm.
Output type for connecting an external induction loop: Jack (female) TRS
Connecting the additional SH-12 module and supporting it:
• Wiegand input: from 6 to 58 bits inclusive
• Wiegand output for card, key fob, UKEY, QR, face, digital code and all other types of identifiers: from 26 to 128 bits inclusive
Speed dial buttons: Concierge call button
Number of ringtones: 4 polyphonic ringtones
Authentication:
• Separate password for settings
• WEB interface
Additionally:
• Software link support
• SIP P2P
• Integrated relay
• Open API
