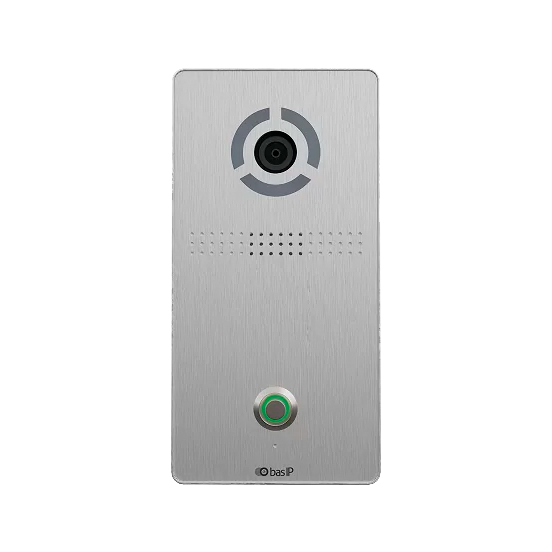

Bas-IP AV-04SDI Individual Panel
Bas-IP

Bas-IP AV-04SDI Individual Panel

Sale price€428,99

Tax included.

BAS-IP single door station AV-04SDI for surface mounting. Vandal-resistant housing, wall mounting. This means no hole needs to be drilled in the wall or door.

Each panel ensures perfect image and sound transmission to the intercom's internal monitors. It's possible to engrave custom text or a logo on the panels.

The panel is so narrow that it can be installed almost anywhere.

If installed in a shopping center or office building, we can engrave the inscription “INFO CALL” at the factory upon request.

Color: Black
In stock

Bas-IP AV-04SDI Individual Panel

1.3 MPx digital IP camera; 100° viewing angle; IP64 protection; operating temperature: -40 to +65°C; PoE and +
12V DC; support SIP P2P; RS485; backlit mechanical call button; built-in relay for lock control; QR code access.

Technische Details

Panel Type: Individual

Camera: 1/4″

Camera viewing angle: 100° (horizontal)

Resolution: 2.0 MP

Video output: 720p (1280 x 720), H.264 Main Profile

Night light: 6 LEDs

Light sensitivity: 0.01 lux

IR code: IK09

Protection class: IP65

Operating temperature: -40 – +65 °C

Operating humidity: 0-89%.

Storage humidity: 0-60%.

Power consumption: 6.5 W, 2.5 W in standby mode

Power supply: PoE, +12 VDC (+12%-6%)

Housing: aluminum

Call button: mechanical

Colors: Silver

Size (with bracket): 84×170×31 mm

Case dimensions: 220×116×65 mm.

Gross weight: 0.69 kg

Mounting type: Surface mounting

Interface: Multilingual, WEB interface

Unlocking the lock: via monitor; via QR code;
via guest link; via BAS-IP intercom application; via
API

Integration with ACS: WIEGAND-26 input

Authentication: WEB user interface and RTSP stream

Optional: Built-in relay; software support; SIP P2P; Open API
